    100M Ethernet Through Hole Slip Ring Ø12.7mm Optional Parameters

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN012-06P2-01EM
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    100M Ethernet Through Hole Slip Ring Ø12.7mm Optional Parameters


    Slip Ring 100M Ethernet Through Hole Ø12.7mm optional parameters


    ECN012-06P2-01EM is a Ethernet slip ring from CENO company, there are 6 circuits for 10A, 1group for 100M Ethernet signal, and no packet loss, no code missing and no string yards phenomenon. This Ethernet slip ring can transmit signals stably with the speed of 0~300rpm in the temperature from -20°C to +60°C and most of the specification is optional according to customer request, as CENO’s guest feedback Ethernet slip ring mainly used on the turntable test equipment, automatic equipment, filling machine, electric heating equipment etc.


    Features

    • Through hole diameter Ø12.7mm

    • Install and Maintenance easier

    • 1 group 100M Ethernet

    • IP51 and can be optional

    • Transmit stably and combine signal & current


    Applications

    • Simulation test equpment

    • Chemical equipment

    • Turntable est equipment

    • Automation in industry


    Optional

    • Circuit number & Current

    • Working speed

    • Protection grade

    • Signal type

    • Through bore size


    Specification

    Current & Circuits6 circuits * 10A; 1 group * 100M Ethernet
    Rating Voltage380 VAC/VDC
    Dielectric strength

    ≥1000VAC@50Hz (P)

    ≥ 300VAC@50Hz (S)

    Isolation resistance

    ≥500MQ@300VDC (P)

    ≥100MQ@300VDC (S)

    Contact resistance float≤30mΩ (on the speed of 50 rpm )
    Lead wire sizeAWG17# Tin coated Teflon®UL CAT5e
    Lead wire length

    Rotor side: 500mm (P) ; 1000mm (S)

    Stator side: 500mm (P) ; 1000mm (S)

    Operating speed0~300rpm
    Contact materialPrecious metal
    Housing materialAluminum alloy
    Working temperature-20°C~+60°C
    Working humidity60%
    IP protection gradeIP51
    Installation wayFix rotor side to the guest main shaft with screws
    Through bore sizeØ12.7mm

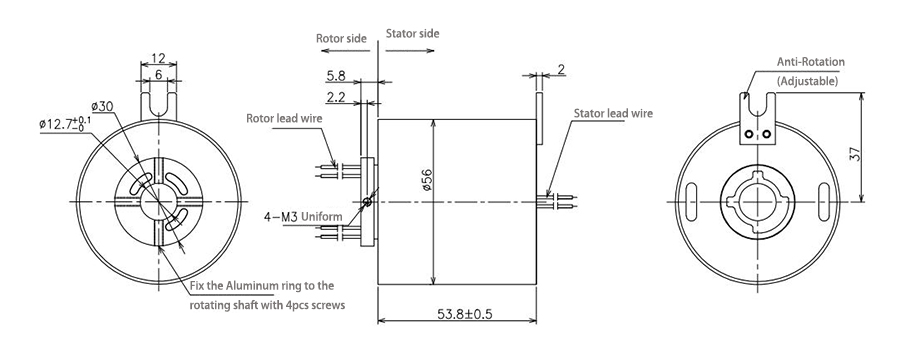

    Outline drawing



    Application


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
