    38.1mm Through Hole Slip Ring 4 Circuits 30A Aluminum Alloy Housing For Industry

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN038-04P
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

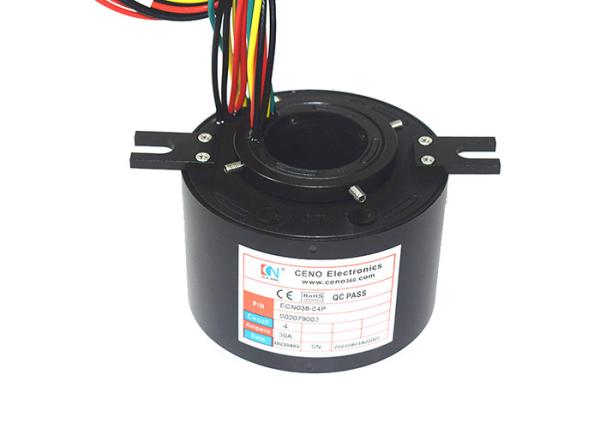

    38.1mm Through Hole Slip Ring 4 Circuits 30A Aluminum Alloy Housing For Industry


    Slip ring with through hole Ø38.1mm 4 circuits for 30A for industry


    ECN038-04P is an standard industry slip ring with through hole size Ø38.1mm and the external diameter Ø99mm from CENO. There are 4 circuits for 30A power and rating voltage is 0~380VAC, it can be working stably at the speed of 0~300rpm in the temperature from -20°C to +60°C. In CENO the electrical slip ring is economical compared with the RF slip ring, Fiber optical rotary joint or integrated slip rings. Most of the parameter is optional according to customer’s request. Such as the hole size, operation speed, IP grade, current and circuits, Voltage and temperature etc.


    Features

    • Economical & long life
    • Most of the parameter is optional and transmit stably
    • Install easily

    Applications

    • Automatic machine
    • Lithium battery equipment
    • Turntable plat
    • Motion simulator

    Optional

    • Circuit number & Current
    • Working speed
    • Protection grade
    • Operating temperature

    Specification


    ECN038-04PSpecification
    Current & Circuits4 circuits * 30A
    Rating Voltage0~380VAC/DC
    Dielectric strength≥1000VAC@50Hz
    Isolation resistance≥500MQ@500VDC
    Contact resistance float≤70mΩ
    Lead wire length

    Rotor wire : 300mm

    Stator wire : 300mm

    Operating speed0~300rpm
    Contact materialPrecious Metal
    Housing materialAluminum alloy
    Working temperature-20°C~+60°C
    Working humidity60% below
    IP protection gradeIP54
    Inner diameterØ38.1mm
    External diameterØ99mm
    Lead wire sizeAWG14# Tin coated Teflon®UL
    Install wayFix the rotor side to the guest main shaft with screws

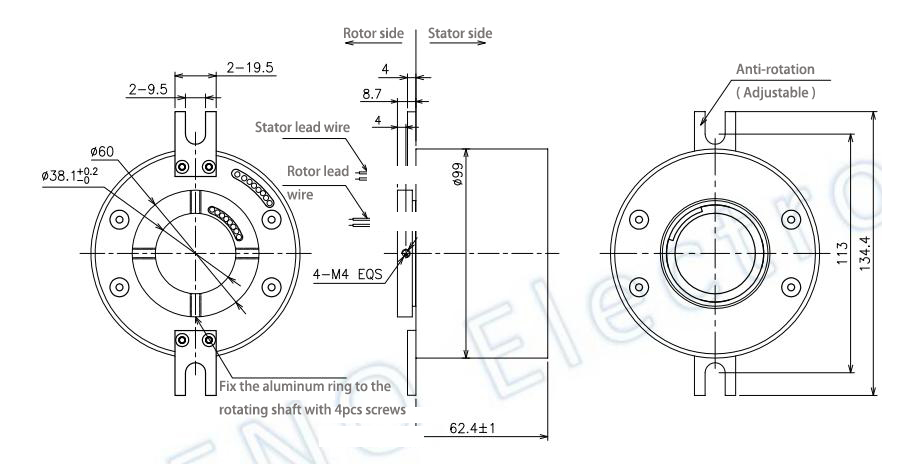

    Outline drawing




    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
