    Capsule RF Coaxial Slip Ring Campact Design Smooth Running Low Noise

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ACN24-1R30P1
    Certification : CE,RoHS,UL,ISO9001
    Price : Negotiable
    Payment Terms : T/T,Paypal,Western Union, L/C
    Supply Ability : 10000pcs month
    Delivery Time : Off the shelf
    • Product Details
    • Company Profile

    Capsule RF Coaxial Slip Ring Campact Design Smooth Running Low Noise

    Capsule slip ring with campact design and RF coaxial smooth running low noise


    ACN24-1R30P1 is an integrated capsule slip ring with external diameter of 24.8mm and length of 65.5mm from CENO company. It can be divided into two kinds, single channel & multi channel high frequency two slip ring. There are 30 circuits for 2A with rating voltage 0-240VAC/DC, 1channel for high-frequency coaxial connector and it can be made into elbow or straight head to fit in different platform.due to it’s compact design and low torque, the capsule slip ring mainly used in High definition video surveillance, process control system, video monitoring system or Radar antenna.


    Features

    • High band width transfer capability
    • Smooth running, low electrical noise
    • Compact design with stable transfer

    Applications

    • Airborne equipment
    • Military equipment with anti-strong shock
    • Automatic machine
    • High speed ball camera

    Optional

    • Circuit number & Current
    • Working speed
    • Protection grade
    • External / inner diameter
    • Operating temperature

    Specification

    ACN24-1R30P1Specification
    Current & Circuits30 circuits * 2A
    Rating Voltage0~240VAC/DC
    Dielectric strength≥500VAC@50Hz (P)
    Isolation resistance≥100MQ@500VDC (P)
    Dynamic resistance fluctuation value≤15mΩ
    Working speed80rpm
    Contact materialGold to Gold
    Housing materialAluminum Alloy
    Cable sizeRG316
    Lead wire lengthStator:250±5mm; Rotor:250±5mm
    Housing MaterialBrass
    Contact MaterialPrecious Metal
    Working temperature-40°C~+80°C
    Working humidity60%below
    IP protection gradeIP40
    Coaxial Parameter
    Frequency rangeDC-3GHz / DC-1.5GHz
    VSWR,max1.6@0-3GHz
    Specific impedance50Ω / 75Ω
    Insertion Loss<1.5dB / < 3dB
    Insertion Loss wow<0.1dB
    VSWR<1.6
    VSWR-WOW<0.1
    Insertion Loss - wow<1°

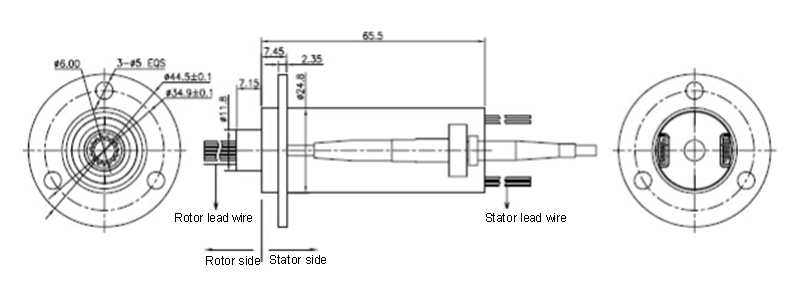

    Outline drawing



    Our Service

    1. Reply inquiry in 24 hours.

    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

    3. Answer your question detailed.

    4. Solved the problem with you during using our products.

    5. Samples will be offered to you for our future cooperation.


    FAQ


    1. What do we do?

    We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.


    2. How long have we been in the business?

    CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.


    3. What is a slip ring?

    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.


    4. How do I choose a slip ring?

    Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.


    5. Do you offer custom slip rings?

    Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
