    5000rpm High Speed Slip Ring Carbon Brush Inner Bore Diameter 35mm IP51

    Ask Lasest Price
    Brand Name : CENO
    Model Number : SCN-C-035-06P2
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    5000rpm High Speed Slip Ring Carbon Brush Inner Bore Diameter 35mm IP51

    High speed slip ring with 5000rpm carbon brush inner bore Ø35mm IP51


    SCN-C-035-06P2 is a high speed carbon brush slip ring from CENO company. This high speed slip ring transmit power and signals stably with the speed of 5000rpm, the operation speed can be designed up to 10000rpm as different application scenarios and optional. There are 6 circuits for 10A power with the rating voltage 415VAC. Due to it’s low torque, low consumption, high stable performance and long service life, it mainly used on the Automatic machine or Test facilities and instruments, such as High-speed train detect equipment, Eddy current testing machinery, or Non-destructive detector etc.


    Features

    • With high speed 5000rpm
    • Use dedicated technology
    • Transmit power / signals stably
    • Compact structure light weight
    • Low loss factor long service life

    Applications

    • Automatic machine
    • Inspection equipment
    • High-speed train detect
    • Eddy current testing
    • Non-destructive detector

    Optional

    • Circuit number & Current
    • Working speed
    • Protection grade
    • Contact material
    • Boundary dimension

    Specification


    SCN-C-035-06P2Specification
    Current & Circuits6 circuits * 10A
    Rating Voltage415VAC
    Dielectric strength≥1500VAC@50Hz (P)
    Isolation resistance≥500MQ@500VDC
    Lead wire length

    Rotor wire : 200mm

    Stator wire : 200mm

    Operating speed0~5000rpm
    Contact materialCopper graphite
    Working temperature-20°C~+60°C
    Working humidity60% below
    IP protection gradeIP51
    Inner diameterØ35mm
    Lead wire sizeAWG17# Tin coated Teflon ® UL 1.0mm²
    Install wayThe Rotor installed on the spindle by screws
    Service life8395h

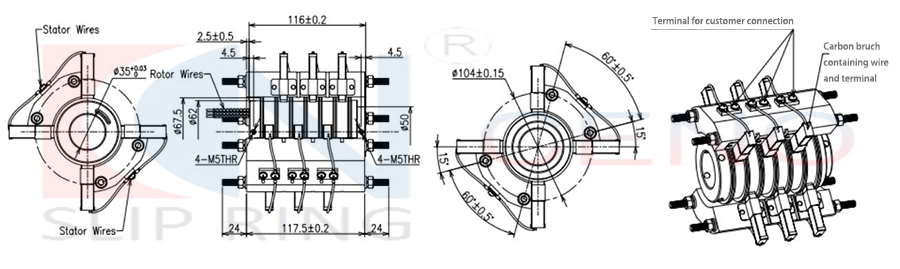

    Outline Drawing


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
