Capsule slip ring with OD Ø24.8mm low electric noise 6ckt*2A speed 300rpm

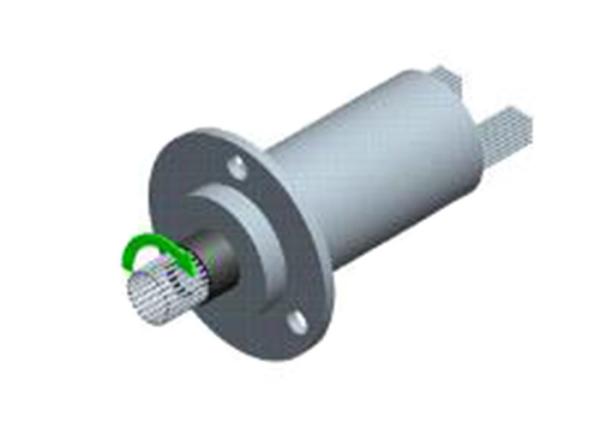

ACN0622T-06 is an integrated capsule slip ring with external diameter of 24.8mm and length of 32.5mm from CENO company. There are 6 circuits for 2A with rating voltage 0-240VAC/DC, it can be working stably at speed of 0~300rpm within the temperature from -20°C to +60°C in normal environment. Due to it’s small compact structure and optional protect grade IP51 to IP68, the capsule slip ring is always used in electromechanical system which requires continuous rotation,unrestrained transfer data or power from a stationary to a rotating structure, such as Automatic machine, tripod head measuring instrument, high speed ball camera or medical equipment.

Features

• Low torque minimizes system torque budget
• Smooth running with low electrical noise
• Compact design to fit in the most demanding space

Applications

• Manufacture and process control instrument
• Electric test instrument
• A key apparatus of Various precision rotary worktable

Optional

• Circuit number & Current
• Working speed
• Protection grade
• External & inner diameter
• Operating temperature

Specification

Outline drawing

Our Service

1. Reply inquiry in 24 hours.

2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3. Answer your question detailed.

4. Solved the problem with you during using our products.

5. Samples will be offered to you for our future cooperation.

FAQ

1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. How long have we been in the business?

CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
