    4 Channels Fiber Optical Rotary Joint With Integrated Power And 485 Signal

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-0350-03P4-02P2-04S-04F-GY-IP67
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    4 Channels Fiber Optical Rotary Joint With Integrated Power And 485 Signal

    4 Channels Fiber Optical Rotary Joint With integrated power and 485 signal


    This is a customized non-standard integrated slip ring with high protection from CENO electronics, there are 3 circuits for 50A, 3 circuits of 20A, 2 circuits for 10A, 2 rings for 485 Signals and 4 channels for single mode of fiber optic. Fiber optic rotary joint parts provide the best solution for data transmission in the rotary connection system. Non-contact technology is the advantage of this series of rotary joint. It’s designed for specific applications, mainly apply to the Opto electronic pod, electric crane, All fiber optic hydrophone and Port Machinery.


    Specification

    ECN000-0350-03P4-02P2-04S-04F-GY-IP67

    Specification
    Current & Circuits3*50A, 3*20A, 1*PE, 2*10A, 2*485Signal
    Rating Voltage0~3300 VAC/VDC
    Dielectric strength

    ≥10000VAC@50Hz (3300VAC)

    ≥1000VAC@50Hz (220VAC)

    Isolation resistance

    ≥1000M@5000VDC

    ≥1000M@500VDC

    Electrical noise≤30mΩ (50rpm)
    Lead wire length

    Rotor : 5000mm

    Stator : 5000mm

    Operating speed0~150rpm
    Contact materialPrecious metals
    Housing materialAluminum alloy + stainless steel
    Working temperature-30°C~+80°C
    Working humidity90%(20°C)
    IP protection gradeIP67
    Rotation Torque3.5N*m
    Fiber typeSingle mode
    Channel4
    Wave length1310 / 1550nm
    Insert loss≤4.0dB
    Return loss≥54dB
    ConnectorFC / APC

    Features

    • Non-contact technology
    • Low contact resistance
    • Install easily
    • Transmit stably

    Applications

    • Automatic machine
    • Port Machinery
    • Opto electric pod
    • Electric crane

    Optional

    • Circuit number & Current
    • Working speed & temperature
    • Protection grade & materials
    • Connector and wavelength

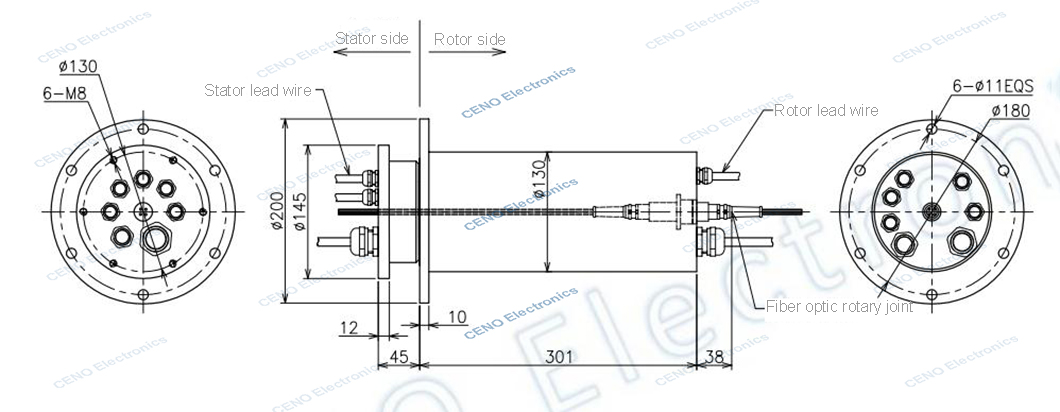

    Outline drawing


    Our Service

    1. Reply inquiry in 24 hours.

    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

    3. Answer your question detailed.

    4. Solved the problem with you during using our products.

    5. Samples will be offered to you for our future cooperation.


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
