    1 Channel Gigabit Ethernet Slip Ring Through Hole Hollow Shaft

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN038-01EG
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

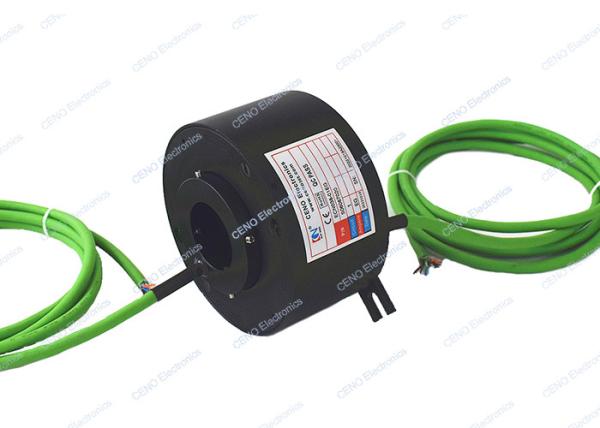

    1 Channel Gigabit Ethernet Slip Ring Through Hole Hollow Shaft

    Through hole hollow shaft 1 channel Gigabit Ethernet signal slip ring


    ECN038-01EG is a external diameter Ø38.1mm through hole gigabit Ethernet slip ring from CENO Electronics, It can combine the power, data and signals with interference in one rotary systems if customer have demands for special applications. Ethernet technology is the most commonly used network technology, according to the signal protocol characteristics of 100M Megabit and Gigabit Ethernet, CENO electronics developed a slip ring for 100M and gigabit Ethernet based on market demand. Usually used on automatic equipment, filling machine, wire-drawing machine and communication system.


    Features

    • Transmit stably no packet loss, non string code,low loss
    • Can mix multi channel signals and currents, comply with EMC

    Applications

    • Automatic machine
    • Operating temperature
    • Communication system
    • Turntable test equipment

    Optional

    • Circuit number & Current
    • Working speed & temperature
    • Protection grade & materials
    • Flange mounting

    Specification


    ECN038-01EG

    Specification
    Current & Circuits1 circuits * Gigabit Ethernet
    Rating Voltage0~380 VAC/VDC
    Dielectric strength≥500VAC@50Hz
    Isolation resistance≥100MΩ@100VDC
    Electrical noise≤30mΩ (50rpm)
    Operating speed0~300rpm
    Contact materialPrecious metals
    Housing materialAluminum alloy
    Working temperature-20°C~+60°C
    Working humidityMax60%
    IP protection gradeIP51
    Through hole sizeØ38.1mm
    Lead wire sizeCAT5e
    Lead wire length

    Rotor : 2000mm

    Stator : 2000mm

    Installation wayStator side fixed on the main shaft with screws

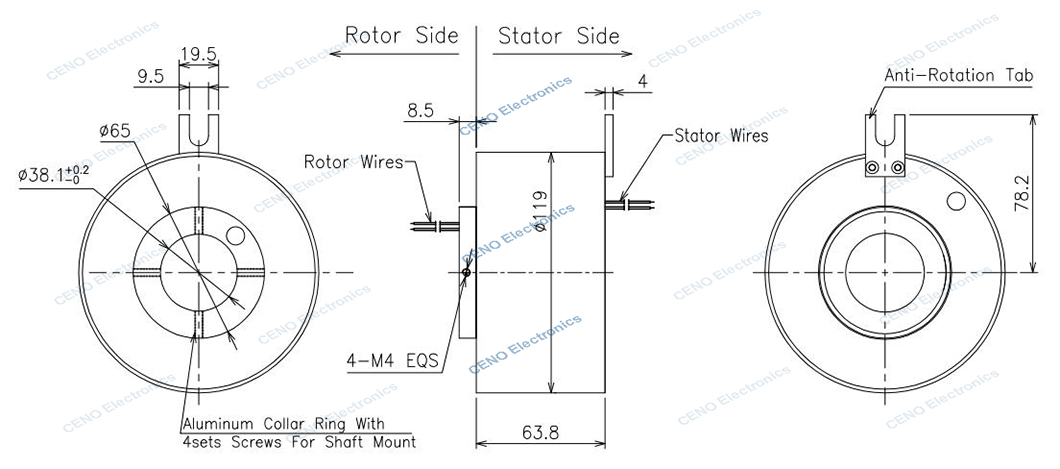

    Outline drawing



    Application


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
