    Diameter 50mm Electrical Slip Ring Hollow Shaft For Industry

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN050-03P1
    Certification : CE,RoHS,UL,ISO9001
    Price : Negotiable
    Payment Terms : T/T,Paypal,Western Union, L/C
    Supply Ability : 10000pcs month
    Delivery Time : Off the shelf
    • Product Details
    • Company Profile

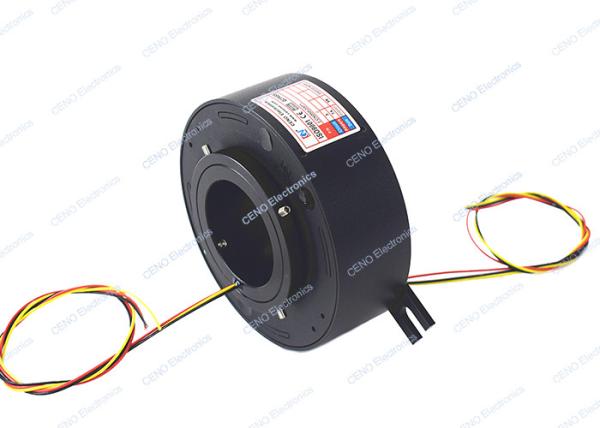

    Diameter 50mm Electrical Slip Ring Hollow Shaft For Industry

    Hollow shaft with diameter 50mm electrical power slip ring for industry


    ECN050-03P1 is a standard through hole electrical slip ring from CENO Electronics, the through hole slip ring is also called hollow shaft slip rings, there are 3 circuits for 5Amp with rating voltage 380VAC. It can be designed to transmit data and analog signals, and the inner diameter is optional from 3mm to 1000mm. Hollow shaft electrical slip ring is more economical compare with other integrated slip rings, and it’s stable performance and transmission are popular choose by CENO’s customers. It’s mainly apply to the harsh environment such as the mines, mountain areas, the oilfield and marine industrial equipment.


    Features

    • Quiet mechanical system operation low noise
    • Advance fiber brush
    • Install easily & transmit stably
    • Inner diameter is optional

    Applications

    • Automatic machine
    • The oilfield
    • Mountain areas
    • Harsh environment

    Optional

    • Circuit number & Current
    • Working speed & temperature
    • Protection grade & materials
    • Through bore size

    Specification


    CN050-03P1

    Specification
    Current & Circuits3 circuits * 5A
    Rating Voltage0~380VAC
    Dielectric strength≥1000VAC@50Hz
    Isolation resistance≥500MΩ@500VDC
    Electrical noise≤30mΩ (50rpm)
    Operating speed0~300rpm
    Contact materialPrecious metals
    Housing materialAluminum alloy
    Working temperature-20°C~+60°C
    Working humidityMax60%
    IP protection gradeIP51
    Through hole sizeØ50mm
    Lead wire sizeAWG22# Tin coated Teflon® UL
    Lead wire length

    Rotor : 300mm

    Stator : 300mm



    Outline drawing





    Our Service
    1. Reply inquiry in 24 hours.
    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
    3. Answer your question detailed.
    4. Solved the problem with you during using our products.
    5. Samples will be offered to you for our future cooperation.

    FAQ

    1. What do we do?
    We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

    2. How long have we been in the business?
    CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

    3. What is a slip ring?
    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

    4. How do I choose a slip ring?
    Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

    5. Do you offer custom slip rings?
    Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

    Why with CENO
    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    Certification
    ISO9001,CE,RoHS,UL,Explosion-proof

    CENO Advantage
    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    Service CENO provides
    24 hours,7days consultant service.
    Mass and customized production.
    Solution offerring for 360° rotation system.

    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
