    Megabit Ethernet Slip Ring 0 - 300rpm Low Electrical Noise For Industry Application

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-06P2-01EM
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Megabit Ethernet Slip Ring 0 - 300rpm Low Electrical Noise For Industry Application

    Megabit Ethernet Signal Slip Ring With Electric Power For Industry Application​


    ECN000-06P2-01EM is an Ethernet signal slip ring with low electrical noise from CENO Electronics, there are 6 circuits for 10A electrical power and 1 channel for 100M Ethernet signal. It can transmit 100M or 1000M Ethernet signal stably as different application and has no packet loss, no string code, low loss and ultra-long distance transmission. Mainly used on various automatic machines, such as filling machinery, wrapping machines, communication system etc.


    Features

    • Can combine various type & channels signal with power
    • No electromagnetic interference between power and signal

    Applications

    • Automatic machine
    • Turntable test equipment
    • Measuring instrument
    • Communication system

    Optional

    • Circuit number & Current
    • Working speed
    • Protection grade
    • Signal type Megabit or Gigabit


    Specification

    ECN000-06P2-01EM

    Specification
    Current & Circuits6circuits*10A, 1circuits*100M Ethernet
    Rating Voltage0~380 VAC/VDC
    Dielectric strength≥1000VAC@50Hz; ≥300VAC@50Hz
    Isolation resistance≥500MQ@500VDC; ≥100MQ@300VDC
    Electrical noise≤30mΩ (50rpm)
    Lead wire length

    Rotor : 1000mm

    Stator : 2000mm

    Operating speed0~300rpm
    Contact materialPrecious metal
    Housing materialAluminum alloy
    Working temperature-20°C~+60°C
    Working humidity60%
    IP protection gradeIP51

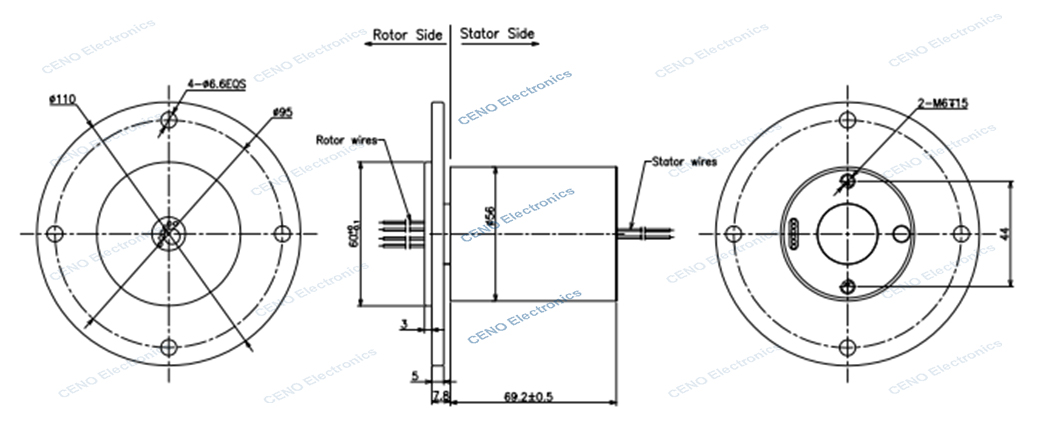

    Outline drawing



    Application


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
