Reliable Antenna Hollow Bore Slip Ring Transferring Power And Signal

Through hole slip rings is also called as hollow shaft slip rings.CENO's hollow shaft slip ring hole size from 3mm to 5000mm are optional.Standard through hole are 12.7mm, 25.4mm, 38.1mm, 50mm, 60mm, 70mm, 80mm, 100mm which we named as ECN012, ECN025, ECN038, ECN050 and all other size are capable to be customized.

Installation Guide

Shaft mounting way
Put the slip ring in the desirable location and tighten four set screws (Not supplied) to the shaft. The max torque is 25 1b—in (Can not exceed).
Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring. Do not constrain wiring such that wire flexing (cold working) occurs.
Doing so will ultimately cause failure (breakage of the wiring).
Use 5/16 (Max diameter) screw fix the Anti-rotation tab properly.

Flange mounting (Customized) way
(1)Align the mounting holes in the flange to mounting base and install flat washers and mounting screws(NOT SUPPLIED).Securely tighten screws.
(2)Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
(3)Use 5/16 (Max diameter) screw fix the Anti-rotation tab properly.

Characteristic

• Support power and signal transmitting

• Reliable Contact ,stable performance
• Compact size, low torque ,low contact resistance

Optional

• Circuit number
• Protection grade
• Signal type

Application

• Automation Equipment
• Antenna military equipment
• Lithium battery equipment

Specification

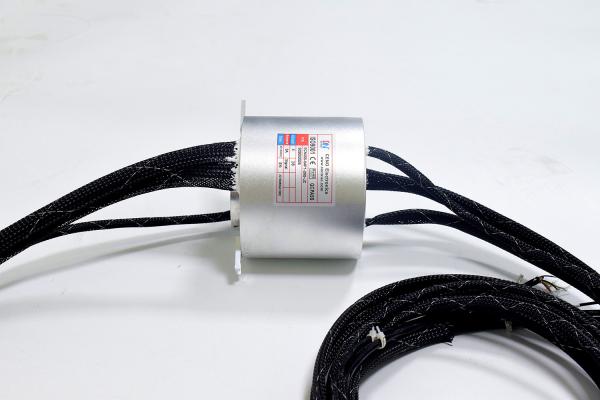

ECN055-05P2-14S-JZ Specification		Picture
Current	5*10A ;14*signal
Through hole size	Ø55mm
Protection Grade	IP54
Working speed	0~50rpm
Contact material	Precious metal
Rating Voltage	32VAC
Dielectric strength	≥500VAC@50Hz
Insulation resistance	300MΩ@500VDC

Outline drawing
