80mm Through Bore Slip Ring 6 Wires 15A Transmit Fiber Brush for Wrap Machine

80mm through hole size slip ring belongs to CENO's ECN series slip ring.The center hole is provided for going through shaft when mounting it on the machine.It adopts bundle fiber brush technology which make contacts on each ring are multiple points.The technology ensures low abrasion performance effectively during slip ring operation.Our standard through hole size are 12.7mm,25.4mm,38.1mm,50mm,60mm,70mm,80mm,100mm,but also can make other hole size up to 2000mm as request.

Structure of through bore slip ring can be installed easily by passing user's tube or shaft as there is one aluminum collar ring which has 4 screw holes for fixing slip ring on the user's tube or shaft.As well as anti-rotation tab or pin could be designed on rotor or stator side as per user's operation request.

The life of slip ring depends on the real working condition,such as rotation speed,temperature and continual operation time.Welcome to contact us with your special demands.

Feature

• Maintenance-free
• Long life with low wear debris
• Low electrical noise
• Flexible installation
• Support power and signal transmitting
• Bi-directional 360° rotation

Typical application

• Radar antenna
• Welding robotics
• Film package machine
• Crane

Specification

ECN080-06P3 Specification		Picture
Current	6*15A
Voltage	380VAC
Electrical noise	100 milliohms max
Dielectric strength	≥1000V@50Hz
Insulation resistance	500MΩ@500VDC
Operating Speed	0-300rpm
Contact Material	Precious Metals
Operating temperature	-20~+60℃
Through bore size	80mm
IP protection grade	IP54

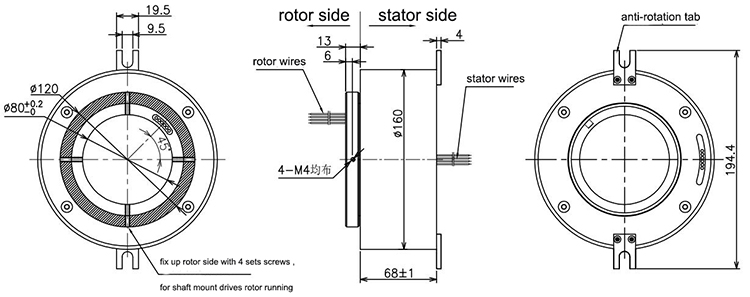

Outline drawing

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.

CENO Electronics Technology Co.,Ltd is a technical company. It has been engaged in Research, Development, Design, Manufacture and Sales in the slip ring field since 2009 and has accumulated abundant experiences and continued to offer high-quality slip rings & professional solutions to many industries and global customers.

CENO factory covers 3000 square meters, and registration capital is 5 million CNY.All members of our technical team are senior engineers, had ever worked for local research institution and multinational enterprise in the slip ring field for more than 10 years. In this field, we aimed to offer completed solutions to our customers,from design, manufacturing to sales since we can fully understand customer’s high-quality demand and application.In order to provide professional services to meet high-end markets’ requirements in respective fields such as maritime, defence, automation, radar, aerospace,motion simulator and engineering machinery.

To satisfy diversified technology demands, CENO has introduced the comprehensive quality management system since 2015, to strictly control each process from R&D, manufacturing, testing and after-sales tracking.No only count on advanced high precision equipment,also utilize high technology to improve product performance and utilize precise instrument to ensure product quality.

CENO electronics is striving to become the leading manufacturer of professional slip rings in the world. Furthermore, we have obtained certification of ISO9001, CE,UL,RoHS and some advanced technology patents. Products sales cover more than 30 provinces & areas domestic, and widely sold worldwide,such as USA, Germany, Italy, Switzerland, UK, France, Singapore, Japan, Korea, Indonesia and so forth. Providing OEM &ODM services to many well-known companies in the world.

As a technical enterprise,CENO has abundant experience in particular industry and special industrial slip ring design.We are capable of providing below customized design.
