Anti Interference Air Rotary Union Ethernet Encoder Signal Shielded Driver Cliq Wire

CENO Electronics Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Anti Interference Air Rotary Union Ethernet Encoder Signal Shielded Driver Cliq Wire from wholesalers

    Buy cheap Anti Interference Air Rotary Union Ethernet Encoder Signal Shielded Driver Cliq Wire from wholesalers
    • Buy cheap Anti Interference Air Rotary Union Ethernet Encoder Signal Shielded Driver Cliq Wire from wholesalers
    • Buy cheap Anti Interference Air Rotary Union Ethernet Encoder Signal Shielded Driver Cliq Wire from wholesalers
    • Buy cheap Anti Interference Air Rotary Union Ethernet Encoder Signal Shielded Driver Cliq Wire from wholesalers
    • Buy cheap Anti Interference Air Rotary Union Ethernet Encoder Signal Shielded Driver Cliq Wire from wholesalers

    Anti Interference Air Rotary Union Ethernet Encoder Signal Shielded Driver Cliq Wire

    Ask Lasest Price
    Brand Name : CENO
    Model Number : QCN0201-85-08P-04S-02EG
    Certification : ISO9001,CE,RoHS
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

    Anti Interference Air Rotary Union Ethernet Encoder Signal Shielded Driver Cliq Wire

    Shielded Good Driver-Cliq Wire And Anti-Interference Air Rotary Union Ethernet Encoder Signal


    CENO air rotary union can pass compress air,nitrogen and so on.the rotary union contains two precise
    bearings, they share a smooth and lasting high-speed running with firmness and flexibility.With many
    advantages long life ,rapid delivery ,transmit100M/1000M Ethernet ,integrate various signal,anti-interference.


    Features

    • Transmit100M/1000M ether net
    • Integrate various signal and power,comply with EMC
    • reliable transmitting,no package loss,no cross talk,low loss

    Applications

    • Automation equipment
    • Measuring equipmen
    • Lithium battery equipment

    Optional

    • Circuit number
    • IP protection grade
    • Current rating
    • Ethernet signal

    Specification


    QCN0201-85-08P-04S-02EG SpecificationPicture
    Current8*30A;4*2A;2 group Driver-cliq Ethernet encoder signal
    Working Temperature-20℃~+60℃
    Protection GradeIP54
    Working speed0~150rpm
    Contact materialPrecious metal
    Rating Voltage380VAC/VDC
    Lead Wire SizeSiemens Driver-cliq wires ,AWG22#
    Working HumidityBelow 60%RH

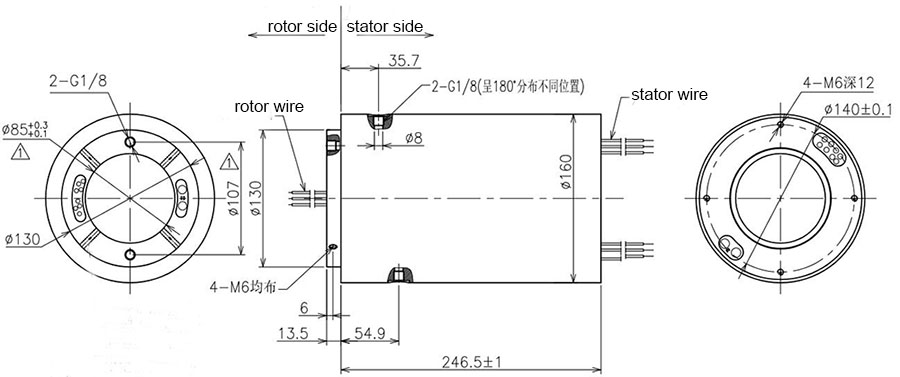

    Outline Drawing



    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
