    1000 M Ethernet Slip Ring No Package Loss Apply To Motion Simulator

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN025-15P2-02EG
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    1000 M Ethernet Slip Ring No Package Loss Apply To Motion Simulator

    1000M Ethernet Slip Ring No Package Loss For Motion Simulator


    Ethernet slip ring specailly designed for 250Mhz frequency to transmit
    100M/1000M Ethernet signals,with advantages of reliable transmitting,no package
    loss,no cross talk,low loss,combine various signal and power with RJ45 connector to use.


    Features
    ◆ Transmit100M/1000M ether net
    ◆ Integrate various signal and power,comply with EMC
    ◆ reliable transmitting,no package loss,no cross talk,low loss


    Applications
    ◆ Automation equipment
    ◆ Motion simulator
    ◆ Lithium battery equipment


    Optional
    ◆ Circuit number
    ◆ Current rating
    ◆ IP protection grade
    ◆ Signal type


    Specification


    ECN025-15P2-02EG SpecificationPicture
    Current15*10A, 2group 1000M Ethernet
    Through bore sizeØ25.4mm
    Protection GradeIP54
    Working speed0~300rpm
    Contact materialPrecious metal
    Rating Voltage380VAC
    Insulation resistance

    500MΩ@500VDC (power)

    100MΩ@100VDC (signal)

    Dielectric strength

    ≥1000V@50Hz(power)

    ≥500V@50Hz(signal)

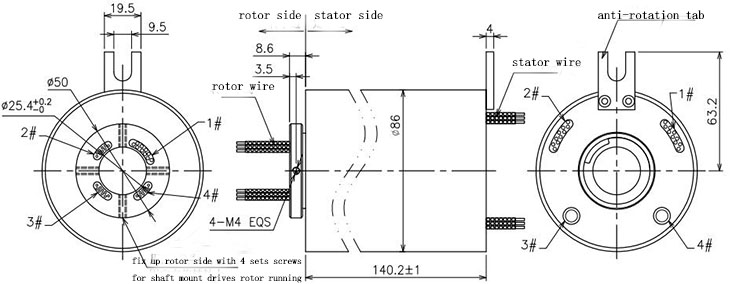

    Outline Drawing
