    380VAC Through Bore Slip Ring

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN025-1815-08S-02E2
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

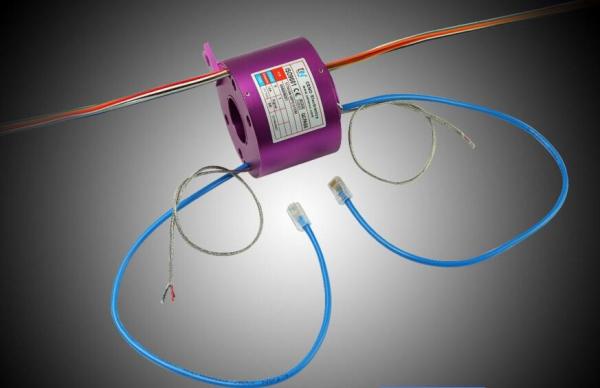

    380VAC Through Bore Slip Ring

    2 Group Ethernet Signal With Improved Signal To Noise Ratio Feature Electrial Slip Ring


    The model ECN025-1815-08S-02E2 ,it has 18 circuits number with 15Amp per circuit and 8 signal two group 100M Ethernet signal,
    It combines the characteristics of through hole slip ring and Ethernet signal,centre hole diameter is 25.4mm convenient to install ,as well as integrate fiber optic ,RF rotary joint.On both the stator and rotor for simplified electrical connections with RJ 45 connector for directly plug.


    Features


    ◆ Ethernet signals meet protocol requirements
    ◆ Integrate various signal and power

    ◆ Improved signal -to- noise ratio


    Applications


    ◆ Simulator
    ◆ Automatic equipment


    Optional
    ◆ Circuit number
    ◆ Ethernet signal size
    ◆ Installation way
    ◆ Signal type


    Specification


    Parameter
    Circuit18 * 15A ; 8 * signal ;
    2 * 100M Ethernet signal
    Protection GradeIP54
    Voltage380VACTemperature-20°C~+60°C
    Insulation Resistance

    500MΩ@500VDC(current)

    100MΩ@100VDC(signal)

    Rotating speed0~300rpm
    Dielectric Strength

    ≥1000V@50hz(current)

    ≥500 V@50hz(signal)

    Contact MaterialPrecious metal
    Electrical Noise≤70mΩ(by50rpm)Housing materialAluminum alloy sandblasting oxidation black
    Humidity<60%RHInstallation wayFrank

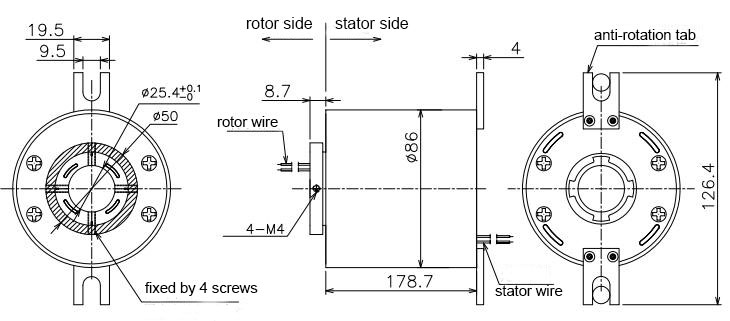

    Outline Drawing



    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
