    Simulation Tester Female Interface Sma Rotary Joint Aluminum Alloy Case Material

    Ask Lasest Price
    Brand Name : CENO
    Model Number : RCN0218A
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union, L/C
    Supply Ability : 1000pcs per month
    Delivery Time : 1 weeks
    • Product Details
    • Company Profile

    Simulation Tester Female Interface Sma Rotary Joint Aluminum Alloy Case Material

    SMA Female Interface Two Channel Coaxial Rotary Joint For Simulation Tester


    Coaxial Radio Frequency Slip Ring is one of a series of products in our company CENO Electrionics Technology Co.,Ltd .For more RF rotary joints (slip rings) informations ,pls visit our website:WWW.ceno360.com


    RF rotary joint design adopts the principle of skin effect of high frequency signal and the structure simulation of coaxial cable. To ensure
    RF rotary joint with the high frequency signal low damage and reliable transmission,
    CENO uses import high elastic wear-resisting material in the internal key contact point of the
    RF rotary joint and do special plating in the surface for it. It is a connector device to transmit
    high frequence signal from the static to rotating part.



    Typical uses


    ◆Simulation tester

    ◆Antenna system
    ◆Traffic control system



    Specification


    Specifications
    Channel 1Channel 2
    InterfaceSMA Female (50 ohms)SMA Female (50 ohms)
    StyleI TypeI Type
    Frequency RangeDC to 18 GHzDC to 18 GHz
    Peak Power, Max.1000 W1000 W
    Average Power, Max.30 W20 W
    VSWR, Max.

    1.35 @ 0 to 8 GHz

    1.5 @ 8 to 18 GHz

    2 @ 0 to 4 GHz

    3.5 @ 4 to 12 GHz

    4.5 @ 12 to 18 GHz

    VSWR WOW , Max.0.1

    0.1 @ 0 to 4 GHz

    0.4 @ 4 to 12 GHz

    2.0 @ 12 to 18 GHz

    Insertion Loss, Max.

    0.4 dB @ 0 to 12 GHz

    1.0 dB @ 12 to 18 GHz

    0.5 dB @ 0 to 4 GHz

    2.0 dB @ 4 to 12 GHz

    3.5 dB @ 12 to 18 GHz

    Insertion Loss WOW, Max.0.05 dB

    0.1 dB @ 0 to 4 GHz

    0.7 dB @ 4 to 12 GHz

    1.5 dB @ 12 to 18 GHz

    Phase WOW (Degrees Max.)

    0.5 ° @ DC to 8 GHz

    1.5° @ 8 to 18 GHz

    0.5 ° @ DC to 8 GHz

    1.5° @ DC to 8 GHz

    Isolation Min.50 dB
    DC Power (Applied To One Channel Only)0.5 A * 48 VDC @ Full RF Avg. Power0.5 A * 24 VDC @ Full RF Avg. Power
    Rotation Speed, Max.30 rpmLife, Min.10 Million Revolutions
    Starting Torque, Max.5 NcmRotational Torque, Max.5 Ncm
    Case MaterialAluminum AlloyMaterial ContactBeryllium Copper
    Case Ssurface FinishChromate Conversion CoatContact FinishGold Plated
    Weight130 gInsulator MaterialPTFE /
    Temperature Range-40 to +70°C (Operation)

    Humidity

    (Non-Condensing), Max.

    85% (Operation)
    -50 to +70°C (Storage)95% (Storage)
    IP Protection LevelIP 60 per EN 60529MarkingAdhesive Label

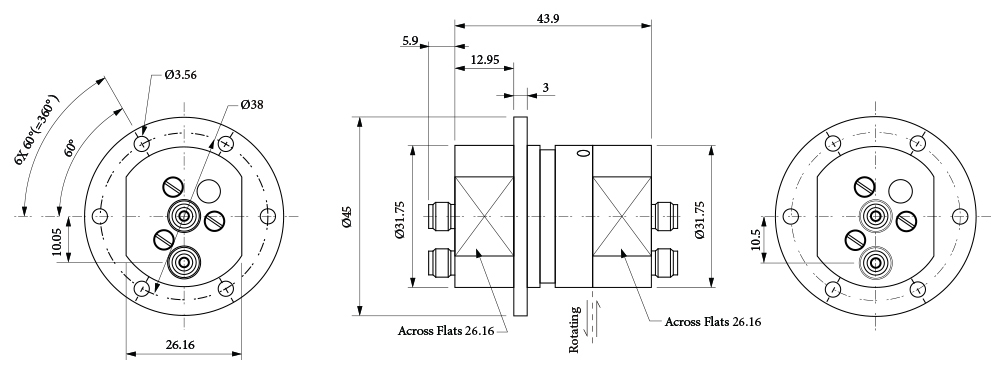

    Outline drawing



    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.



    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
