    One Channel Transmit Fiber Optic Rotary Joint Power And Video Signal

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-02P1-04P2-07P-28S-01F
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union, L/C
    Supply Ability : 1000pcs per month
    Delivery Time : 1 weeks
    • Product Details
    • Company Profile

    One Channel Transmit Fiber Optic Rotary Joint Power And Video Signal

    One Channel Transmit Power And Video Signal On Fiber Rotary Joint


    Fiber Optical Electric Slip Ring also called Fiber Optic Rotary Joint (FORJ). The FORJ is widely used in radar system,motion simulator,marine industrial equipment,naval vessel system.


    We engineer what you need. Our solutions are customized to meet the exact circuits, ratings, and design parameters required for your application.


    Characteristic

    • Integrate different size current and signal
    • Integrate Fiber optic rotary joint
    • High/low temperature environment is available

    Application

    • Radar Antenna
    • Simulator tester

    Option

    • Circuit
    • Fiber type
    • Signal type
    • Installation way

    Specification


    Parameter
    Circuit

    2*20A,2*10A,2*5A,2*4A,3*7A,25*signal,

    2*land wire,(2A),1*Video signal,1*fiber

    Protection gradeIP54
    Rating voltage380VACWorking temperature-20°C ~ + 60°C
    Resistance insulation

    500 MΩ@300VDC(power)

    100 MΩ@300VDC(signal)

    Rotating speed0~300rpm
    Dielectric strength

    ≥1000V@50hz(power)

    ≥300V@50hz(signal)

    Contact materialGold to gold
    Electric noise≤ 70 mΩ(50 rpm)Housing materialAluminum alloy oxidation white
    Working humidity≤60%RHInstallation wayStator will be fixed axis of equipment by screw
    Fiber rotary joint technology data
    Fiber typeSM(9/125um)Channel1
    Insert lost and changing<2dB(<1dB)Power23dBm

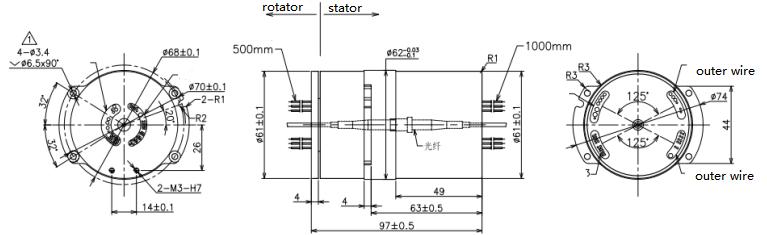

    Outline drawing




    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.



    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
