    Big Current Slip Ring Electrical Connector , Custom Slip Ring Low Electric Noise

    Ask Lasest Price
    Brand Name : CENO
    Model Number : HCN02A
    Certification : CE,RoHS,UL,ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T,Paypal,Western Union
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

    Big Current Slip Ring Electrical Connector , Custom Slip Ring Low Electric Noise

    32mm Low Electric Noise Big Current Contector Slip Ring With Compact Size


    Connector slip ring is non-mercury slip ring,It adopt standard flat joint for easy connection,low torque , smooth rotation,low contact resistance,reliable performance ,non-pollution and long life. It can replace the traditional mercury slip ring,it becomes the non-mercury slip rings for industrial manufacturing,reliable installation, fast and convenient.


    We also offer customized slip ring for your special requirements.


    Typical applications


    ◆ Winding machine
    ◆ Packing robot
    ◆ Rotary lamp box
    ◆ Electro plating line


    Product Features


    ◆ Very low electric noise
    ◆ Maintenance free and better installation than traditional slip rings
    ◆ Suitable for signal and power transfer of rotating devices or instrument
    ◆ Compact size

    ◆ No mercury inside
    ◆ Flat pin replace lead wire


    Specification


    HCN02A Specification


    OD32mm

    Big Current Slip Ring Electrical Connector , Custom Slip Ring Low Electric Noise


    Number of pin2
    Operating speed0-400rpm
    Current Rating14Amp for each pin
    Diaelectric strength500VAC@50Hz,60s
    Insulation resistance1000MΩ/500VDC
    Voltage240VDC/240VAC
    Electrical noise<10mΩ
    Operating temperature-20~+60℃
    Operating Humidity60%RH
    Contact materialPrecious metal
    Flat pin thickness x width0.8×6.3mm
    Housing materialEngineering plastic or metal

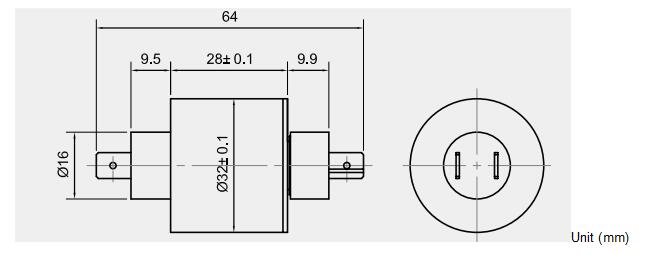

    Outline drawing


    Application pictures



    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
