    Economic High Amp Slip Ring , High Power Slip Ring Flat Pin Replace Lead Wire

    Ask Lasest Price
    Brand Name : CENO
    Model Number : HCN04A
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 weeks
    • Product Details
    • Company Profile

    Economic High Amp Slip Ring , High Power Slip Ring Flat Pin Replace Lead Wire

    No mercury Inside Insert type Huge AMP Slip Ring 4 Flat Pin For Winding Machine


    The main feature of this high current slip ring series are big current without doubt, actually
    it can also can be named high power slip ring or high amp slip ring. CENO use unique design
    and exquisite technology to research and develop late-model product to satisfy requirement of some
    special applications. The current of our product could be up to 600A, we will try our best endeavor to
    launch more and more latest product into market.
    If you have specific customized requirement, please feel free to consult us so that our sales engineer
    could recommend the most suitable product to you for you reference.


    For more details,
    see www.ceno360.com


    Typical applications


    ◆ Winding machine
    ◆ Packing robot
    ◆ Rotary lamp box
    ◆ Electro plating line



    Advantages

    ◆ Very low electric noise
    ◆ Maintenance free and better installation than traditional slip rings
    ◆ Suitable for signal and power transfer of rotating devices or instrument
    ◆ Compact size
    ◆ No mercury inside
    ◆ Flat pin replace lead wire


    Specification


    HCN04A Specification


    OD32mm

    Economic High Amp Slip Ring , High Power Slip Ring Flat Pin Replace Lead Wire


    Number of pin4
    Operating speed0-400rpm
    Current Rating

    2x2Amp

    2x14Amp

    Diaelectric strength500VAC@50Hz,60s
    Insulation resistance1000MΩ/500VDC
    Voltage240VDC/240VAC
    Electrical noise<10mΩ
    Operating temperature-20~+60℃
    Operating Humidity60%RH
    Contact materialPrecious metal
    Flat pin thickness x width0.8×6.3mm
    Housing materialEngineering plastic or metal

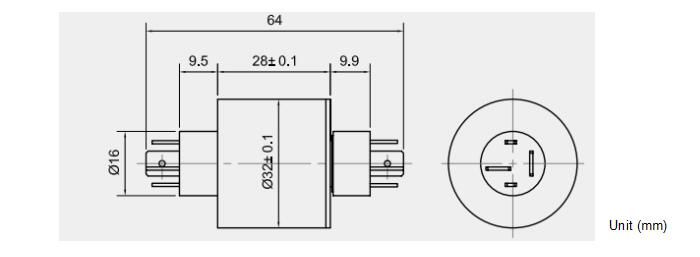

    Outline drawing :




    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.



    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
