    Stable Signal Non Mercury Slip Ring Insert Type 8 Flat Pin For Packing Robot

    Ask Lasest Price
    Brand Name : CENO
    Model Number : HCN08A
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 weeks
    • Product Details
    • Company Profile

    Stable Signal Non Mercury Slip Ring Insert Type 8 Flat Pin For Packing Robot

    Stable Signal Without mercury Inside Big Current Slip Ring With 8 Flat Pin For Packing Robot


    CENO insert - type non - mercury large current slip ring can fully meet the environmental requirements in addition to the conventional slip ring features. It adopt standard flat joint for easy connection,low torque , smooth rotation,low contact resistance,reliable performance ,non-pollution and long life. It can replace the traditional mercury slip ring,it becomes the non-mercury slip rings for industrial manufacturing.

    Reliable installation, fast and convenient,stable signal.


    Any requirement, please feel free to contact us ,and we will recommend the most suitable product to you.


    Typical uses


    ◆ Winding machine
    ◆ Packing robot
    ◆ Rotary lamp box
    ◆ Electro plating line



    Advantages

    ◆ Very low electric noise
    ◆ Maintenance free and better installation than traditional slip rings
    ◆ Suitable for signal and power transfer of rotating devices or instrument
    ◆ Compact size
    ◆ No mercury inside
    ◆ Flat pin replace lead wire


    Specification


    HCN08A Specification


    OD45mm

    Stable Signal Non Mercury Slip Ring Insert Type 8 Flat Pin For Packing Robot


    Number of pin8
    Operating speed0-400rpm
    Current Rating

    2x5Amp

    6x20Amp

    Diaelectric strength500VAC@50Hz,60s
    Insulation resistance1000MΩ/500VDC
    Voltage240VDC/240VAC
    Electrical noise<10mΩ
    Operating temperature-20~+60℃
    Operating Humidity60%RH
    Contact materialPrecious metal
    Flat pin thickness x width0.8×6.3mm

    0.8x2.8mm

    Housing materialEngineering plastic or metal

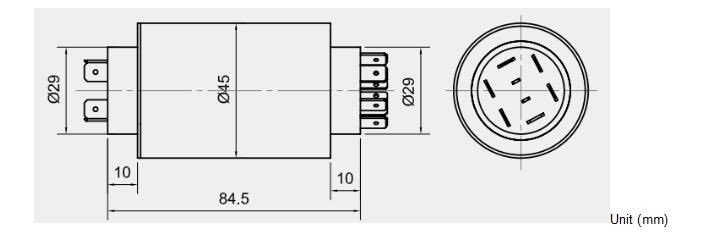

    Outline drawing :




    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.



    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
