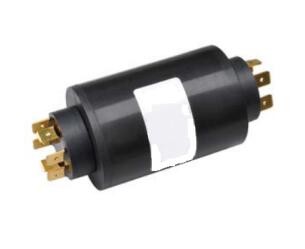

    Reliable Performance High Current Slip Ring 6 Flat Pin For Winding Machine

    Ask Lasest Price
    Brand Name : CENO
    Model Number : HCN06A
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 weeks
    • Product Details
    • Company Profile

    Reliable Performance High Current Slip Ring 6 Flat Pin For Winding Machine

    Reliable Performance No mercury Inside High Current Slip Ring 6 Flat Pin For Winding Machine


    CENO HCN series is a cluster of slip rings characterized by high current transmission up to
    2000A(peak current).It adopts state-of-the-art technology with special design to meet different
    requirements of multifarious fields .Moreover, the large welding strength of its base between support
    plate and foot is validated by the simulation test. Generally speaking,it is a customer-specific part
    designed exclusively for special application where high-current transmission is required particularly.
    It used for platform crane/ vessel crane/scientific research crane/drilling platform etc.


    Any requirement, please feel free to contact us ,and we will recommend the most suitable product to you.


    Typical uses


    ◆ Winding machine
    ◆ Packing robot
    ◆ Rotary lamp box
    ◆ Electro plating line



    Advantages

    ◆ Very low electric noise
    ◆ Maintenance free and better installation than traditional slip rings
    ◆ Suitable for signal and power transfer of rotating devices or instrument
    ◆ Compact size
    ◆ No mercury inside
    ◆ Flat pin replace lead wire


    Specification


    HCN06A Specification


    OD45mm

    Reliable Performance High Current Slip Ring 6 Flat Pin For Winding Machine


    Number of pin6
    Operating speed0-400rpm
    Current Rating

    20Amp for each pin

    Diaelectric strength500VAC@50Hz,60s
    Insulation resistance1000MΩ/500VDC
    Voltage240VDC/240VAC
    Electrical noise<10mΩ
    Operating temperature-20~+60℃
    Operating Humidity60%RH
    Contact materialPrecious metal
    Flat pin thickness x width0.8×6.3mm
    Housing materialEngineering plastic or metal

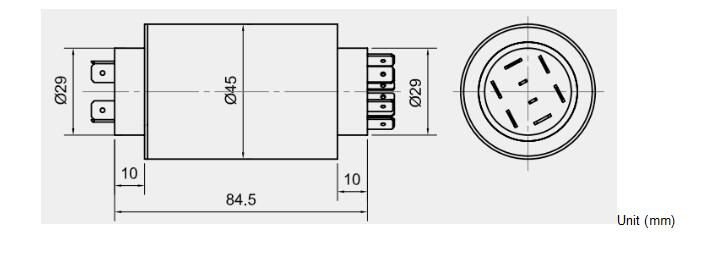

    Outline drawing :




    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.



    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
