    Engineering Plastics Housing Capsule Slip Ring OD 8.5mm For Rotary Sensors

    Ask Lasest Price
    Brand Name : CENO
    Model Number : CCN06B
    Certification : CE,RoHS,UL,ISO9001
    Price : Negotiable
    Payment Terms : T/T,Paypal,Western Union, L/C
    Supply Ability : 10000pcs month
    Delivery Time : Off the shelf
    • Product Details
    • Company Profile

    Engineering Plastics Housing Capsule Slip Ring OD 8.5mm For Rotary Sensors


    Engineering Plastics Housing OD 8.5mm Thumb Size Slip Ring For Rotary Sensors


    Thumb size slip ring belong to capsule slip ring,it has very compact size and use gold to gold coating contact technology to let the signals transmission very reliable and the housing can have different flanges to fit the different mount structure.
    It is available from 2 circuits to 56 circuits with different out diameter housing.
    For more information ,pls see below


    Main Uses:


    ◆ Robotics, rotary sensors, urgent illumination equipment

    ◆ Electrical test equipment

    ◆ Manufacturing and process control equipment

    ◆ Indexing tables.

    ◆ CCTV pan / tilt camera mounts

    ◆ Exhibit / display equipment.

    ◆ Mini-type wire-rolling machine

    ◆ Closed-circuit control


    Features:


    ◆ Smooth running

    ◆ Low electrical noise

    ◆ 360°continuous rotation

    ◆ Low torque

    ◆ Compact package



    Specification


    CCN06B SpecificationPicture
    Operating Speed0-300 rpmEngineering Plastics Housing Capsule Slip Ring OD 8.5mm For Rotary Sensors
    Number of circuits6
    Current Rating1 A/circuit
    Voltage240 VAC/DC
    OD8.5 mm
    Operating Humidity60%RH or higher
    Electrical noise1m Ω
    Operating temperature-20~+80℃
    Protection GradeIP54
    Housing MaterialEngineering Plastics
    Contact MaterialPrecious Metals
    Lead wire size30 # silver plated copper
    Option

    • Lead wire length

    • IP grade

    • Operating speed

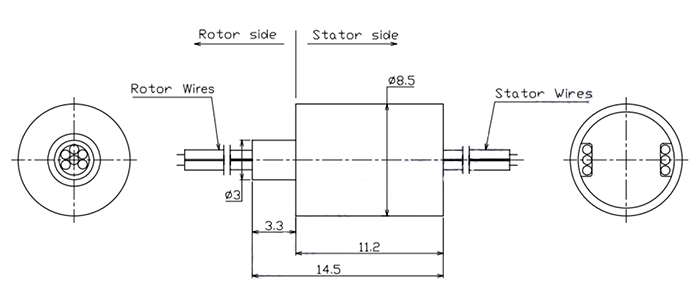

    Outline drawing



    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
