    56 Circuit Multi Channel Capsule Slip Ring With Precious Metal Materials

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ACN25-56
    Certification : CE,RoHS,UL,ISO9001
    Price : Negotiable
    Payment Terms : T/T,Paypal,Western Union
    Supply Ability : 10000pcs month
    Delivery Time : Off the shelf
    • Product Details
    • Company Profile

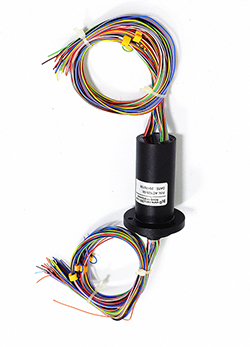

    56 Circuit Multi Channel Capsule Slip Ring With Precious Metal Materials

    56 Circuit Multi Channel Capsule Slip Ring With Precious Metal Materials


    Precious metals materials could make sure the capsule slip ring low electrical noise and longer work life time,
    specially suit for small and medium size equipment to transmit weak signal.This series adopts advanced
    standard military degree surface processing technology to meet the demand of every customer.
    If you have specific customized requirement, please feel free to contact us so that our sales engineer could recommend the most suitable product to you for your reference.


    Typical applications


    ◆ CCTV pedestal

    ◆ Automatic arm

    ◆ Medical equipments

    ◆ Rotary index table

    ◆ Production line, industry process equipments


    Advantage


    ◆ Continuous transmission of signal and/or data under 360° unrestrained rotation

    ◆ Less noise, long life

    ◆ Low torque, smooth rotation

    ◆ Electrical Noise<0.01Ω



    Specification


    ACN25-56 SpecificationPicture
    Operating Speed0-300 rpm
    Number of circuits56
    Current Rating2A/circuit
    Voltage240 VAC/DC
    ODΦ25 mm
    Operating Humidity60%RH or higher
    Electrical noise<10m Ω
    Operating temperature-20~+80℃
    Protection GradeIP54
    Housing MaterialAluminum alloy
    Contact MaterialPrecious Metals
    Lead wire sizeAWG26#,28# silver plated copper
    Option

    • Lead wire length

    • IP grade

    • Operating speed

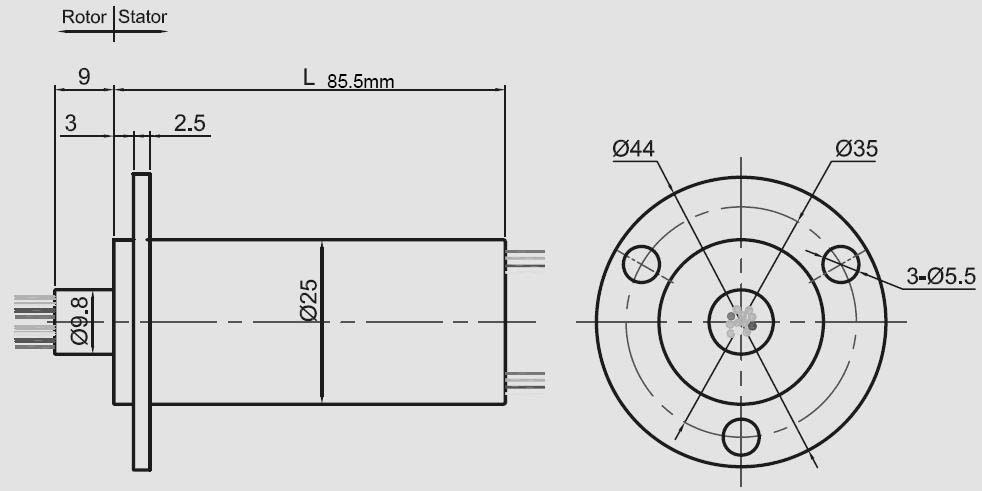

    Outline drawing



    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
