    Rail System Pancake Slip Ring , Separate Slip Ring 6mm Slim Thickness

    Ask Lasest Price
    Brand Name : CENO
    Model Number : PSCN046-02P1
    Certification : CE,RoHS,UL,ISO9001
    Price : Negotiable
    Payment Terms : T/T,Paypal,Western Union
    Supply Ability : 10000pcs per month
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

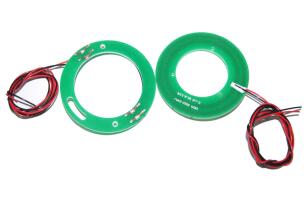

    Rail System Pancake Slip Ring , Separate Slip Ring 6mm Slim Thickness

    Slim Thickness Separate Pancake Slip Ring With 6mm For Rail system


    CENO pancake slip ring is divided into two classifications,PCN and PSCN.
    CENO pancake slip rings are designed for some equipment which vertical space is limited while horizontal
    space is less restrictive.This type slip ring provides ultrathin thickness for special
    limited installation space.Thickness could be up to 4mm.This kind pancake slip ring
    design with through hole or no hole are optional.
    One is integraltype and another one is separate type.We also called pancake slipring as platter slip ring
    because of its outline.Extremely thin is the feature of this series slip ring.It is very
    welcomed by those applicatons which installation space is limited in height.Platter slip ring
    distributes the rings in radial direction to save axial space.Proper contact between two discs
    is critical design consideration.Besides the thin feature,light weight is also one advantage in
    separate pancake slip rings.


    Features

    ◆ Economy cost

    ◆ Reliable contact between brush and ring
    ◆ Flexible installation
    ◆ Suitable for signal and power transfer of rotating devices or instrument
    ◆ Compact size

    ◆ Slim thickness


    Typical application


    ◆ Lamp lighting
    ◆ Rotary stage
    ◆ Rotary lamp box
    ◆ Rail system


    Specification


    PSCN046-02P1 Specification


    TypeSeparate PCB type
    Number of ring2
    Operating speed0-100rpm
    Current Rating2x5Amp
    Voltage380VAC/DC
    Electrical noise30 milliohms max.
    Operating temperature-20~+60℃
    Contact materialPrecious metal
    MaterialPCB
    Thickness after assembly6mm

    Outline drawing


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
