    Compact High Speed Slip Ring , Through Hole Slip Ring 5 * 10A / 24 * 5A


    Slip Ring High Speed Compact Through Hole Rotary Joint For Miniature Generator Motor Assembly


    The ECN040-05P2-24S is a high speed compact through bore slip ring,it provides an economical, readily available solution when a compact through-bore configuration is required.


    CENO company produce the conductive slip ring with compact size,light weight,high reliability, maintenance free and protection level can reach IP68,that is the important reason why many manufacturers choose us.


    Features

    • Easy to install
    • Continuous transmission signal or data under 360° rotation
    • High IP protection

    Applications

    • Automation equipment
    • Miniature Generator Motor Assembly

    Optional

    • Circuit number
    • IP protection grade
    • Current rating
    • Signal type


    Specification


    ECN040-05P2-24S SpecificationPicture
    Current5*10A; 24*5A
    Working Temperature-40℃~+80℃
    Protection GradeIP51
    Working speed0~250rpm
    Contact materialPrecious metal
    Rating Voltage380VAC
    Through hole size40mm
    Lead Wire Length1000mm

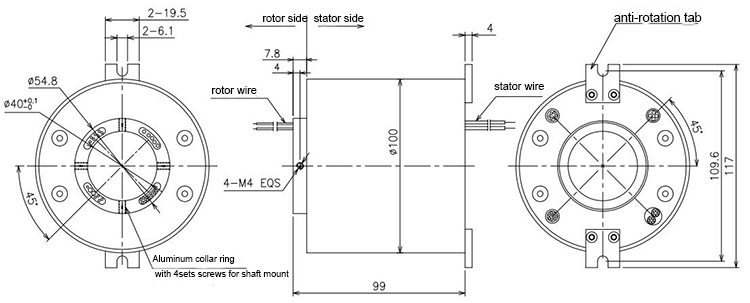

    Outline Drawing



    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
