    IP67 Waterproof Slip Ring Anti Explosion IP67 Protection Grade For Oil Platform

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN-EX-03P-06S
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    IP67 Waterproof Slip Ring Anti Explosion IP67 Protection Grade For Oil Platform

    Protection Grade IP67 Anti-Explosion Slip Ring With High Safety For Oil Platform


    Slip rings can be used in any electromechanical system that requires intermittent or continuous rotation to transmit power or data.
    Explosion-proof slip-ring is an electric slip-ring that works in explosive environment. CENO has strong ability to produce all kinds of slip-rings with explosion-proof grade.If you have any interest, please contact us online or via email.


    we can custom to make various slip ring as requested !


    Characters


    • Protection grade reach to IP67
    • Suitable working environment in temperature of -40~80℃
    • High safety & high reliability


    Application


    • Oil platform
    • Marine platform
    • Chemical equipment

    Option


    • Circuit number
    • Current size 10~400A
    • Signal Type
    • Protection grade
    • Anti-explosion grade

    Specification


    parameter
    Circuit3*100 A,6*signalProtection gradeIP65
    Voltage660VAC/24VDC

    Anti-explosion

    grade

    Exd II BT4 Gb IP65
    Insulation Resistance

    ≥500MΩ@100VDC(power)

    ≥300MΩ@100VDC(signal)

    Rotating speed0~50rpm
    Dielectric Strength

    ≥2500VAC@50Hz(power)

    ≥1000VAC@50Hz(signal)

    Contact MaterialCopper graphite
    Resistance fluctuation

    10mΩ(power)

    5mΩ(signal)

    Wire spec

    25mm²(power)

    1.5mm²(signal)

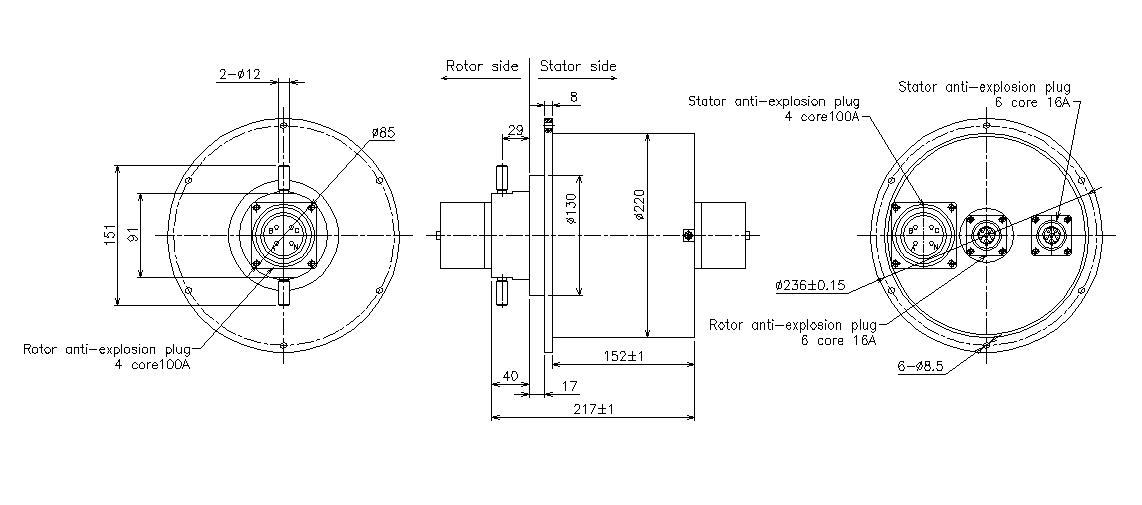

    Outline Drawing



    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
