    4 Signal Thermocouple Slip Ring 300mm Size 0 - 200 Rpm Working Speed

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN300-24P
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    4 Signal Thermocouple Slip Ring 300mm Size 0 - 200 Rpm Working Speed

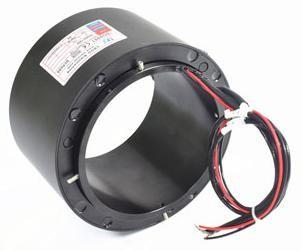

    300mm Large Bore Size Thermocouple Slip Ring With 4 Thermocouple Signal


    Thermocouple slip ring is able to work for thermocouple signal and thermocouple sensor .
    CENO can produce the thermocouple slip ring working in high temperature like 200°C.
    CENO can also work out the 0 temperature deviation measurement.
    If you have any interest, please contact us online or email us the solution you requested.



    Application


    • Exhibit/display equipment
    • Motion simulator
    • Sewage treatment
    • Rotary table, seaport equipment, amusement equipment

    Features

    • High protection class
    • Long lifespan, maintenance-free
    • Various type of signal could be integrated
    • Low Torque ,low loss ,low electrical noise


    Option

    • Circuit number
    • Current size
    • Protection grade
    • Signal type

    Specification


    Parameter
    Circuit4*Thermocouple signal,12*30AProtection GradeIP51
    Voltage380VACTemperature-20℃~+80℃
    Insulation Resistance≥500MΩ@200VDCHumidity0~90%RH

    Dielectric

    Strength

    ≥1500VAC@50HzRotating speed0~200rpm
    Resistance fluctuation≤20mΩContact MaterialGraphite,precious metal
    DiameterФ300mmWire specAWG12# Tin-coated ®UL,K type Thermocouple wire


    Outline Drawing



    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
