    Low Torque Industrial Slip Ring , Signal Slip Ring low Electrical Noise

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN180-04S
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Low Torque Industrial Slip Ring , Signal Slip Ring low Electrical Noise

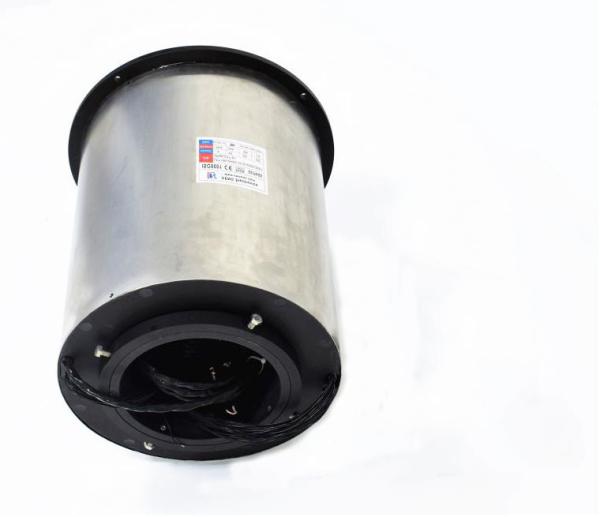

    Thermocouple Signal Slip Ring 180mm Diameter With Low Torque low Electrical Noise


    High temperature thermocouple signal slip ring,It can be used for 360 degree rotating transmission of current and thermocouple signal in high temperature environment. It can work stably in 100-250 degree high temperature environment for a long time. It is mainly used in hot roller, heating device and other high temperature environment



    Features

    • High protection grade
    • 4*K type thermocouple signal

    • Long lifespan, maintenance-free
    • Various type of signal could be integrated
    • Low Torque ,low loss ,low electrical noise

    Application

    • Hot roller, heating device
    • Sewage treatment
    • Material delivery equipment


    Option

    • Circuit number
    • Current size
    • Protection grade
    • Signal type

    Specification


    Circuit4*K type thermocouple signalProtection GradeIP54
    Voltage380VACTemperature-20℃~+60℃
    Insulation Resistance≥100MΩ@100VDCHumidity≤60%RH

    Dielectric

    Strength

    ≥300VAC@50HzRotating speed0~50rpm
    Resistance fluctuation≤70mΩ(50rpm)Contact MaterialPrecious metal
    DiameterФ180Wire specK type Thermorcouple

    Outline Drawing



    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
