    Thermalcouple Industrial Slip Ring 700mm Diameter Copper Graphite Contact Material

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN700-06P
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Thermalcouple Industrial Slip Ring 700mm Diameter Copper Graphite Contact Material

    700mm Diameter Big Size CENO Thermalcouple Slip Ring With Copper Graphite Contact Material


    CENO thermalcouple slip ring is accurate to transmission of thermistor, thermocouple signal with small temperature change and stable working. Besides, thermalcouple slip ring is usually to be applied on chip mounter,automation machinery and agitator in chemical engineering.It has features with simple assembly,easy replacement,wide temperature measurement range from -270℃ to +2800℃,high measurement precision and thermalcouple type is optional.


    Features

    • High protection class
    • Long lifespan, maintenance-free
    • Various type of signal could be integrated
    • Unaffected by ambient temperature change

    Application


    • Automation equipment
    • Environmental protection equipment


    Option

    • Circuit number
    • Current size
    • Protection grade
    • Signal type

    Specification


    Parameter
    Circuit6*24AProtection GradeIP65
    Voltage380VACTemperature-30℃~+80℃
    Insulation Resistance≥500MΩ@1000VDCHumidity≤60%RH

    Dielectric

    Strength

    ≥1500VAC@50HzRotating speed1~2rpm
    DiameterФ700mmContact MaterialCopper graphite

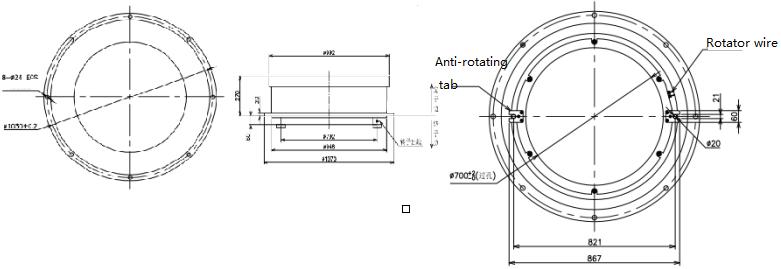

    Outline Drawing


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
