    Explosion Proof Conductive Slip Ring Through Hole Size 180mm For Explosive Environment

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN180-EX-04S
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Explosion Proof Conductive Slip Ring Through Hole Size 180mm For Explosive Environment

    Through Hole Size 180mm IP65 Explosion Proof Slip Ring Widely Used In The Explosive Environment

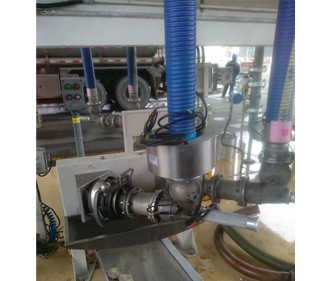

    Explosion-proof conductive slip ring has the explosion-proof function,it can work in the explosive environment,generally used in oil platforms,marine platforms, explosive material packaging equipment.

    At present, the explosion-proof slip ring is still in the non-standard customization stage. When customers choose the explosion-proof slip ring, they need to provide us the explosion-proof grade, circuit number, electrical performance and other parameter.


    Features


    ◆ High safety,high reliability
    ◆ Protection grade:IP65
    ◆ Explosion certification is available
    ◆ Support analog and data signal mixed transmission


    Application
    ◆ Oil platform,marine platform
    ◆ Package equipment of explosive material
    ◆ Agriculture processing equipment



    Optional
    ◆ Circuit number
    ◆ Current rating
    ◆ Grade of explosion grade


    Specification


    ECN180-EX-04S SpecificationPicture
    Current4*10A
    Working Temperature-40℃~+80℃
    Protection GradeIP65
    Working speed0~50rpm
    Contact materialPrecious metal
    Rating Voltage0~12VAC/VDC

    Through hole size


    180mm
    Housing materialstainless steel + aluminium alloy


    Outline Drawing



    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
