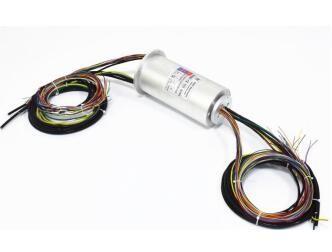

    8 Core Shield Wire High Protection Industrial Slip Ring For Cable Reel

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-02P2-05P-33S
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    8 Core Shield Wire High Protection Industrial Slip Ring For Cable Reel


    8 Core Shield Wire High Protection Industrial Slip Ring For Cable Reel


    An electrical slip ring is a device used to transfer power and data from a stationary to a
    rotating structure. Slip rings can provide continuous or intermittent rotation while
    transmitting power and data -simplifying operation, improving application performance,
    and eliminating risk of damage to wiring between movable parts.


    Characteristic of product
    ◆ High Protection level
    ◆ Reliable Contact ,stable performance
    ◆ Compact size, low torque ,low contact resistance


    Application
    ◆ Cable reel
    ◆ Multiple signal types can be integrated


    Optional
    ◆ Circuit number
    ◆ Current rating
    ◆ IP protection
    ◆ Signal type


    Specification


    Model: ECN000-02P2-05P-33S Parameter
    Housing MaterialStainless steelProtection GradeIP65
    Working Speed0~50rpmRating Voltage380 VAC
    Insulation Resistance

    ≥500MΩ@500VDC(power)

    ≥300MΩ@100VDC(signal)

    Dielectric Strength

    ≥1500V@50Hz(power)

    ≥500V@50Hz(signal)

    Resistance fluctuation≤70MΩContact MaterialPrecious metal
    Lead Wire SizeAWG7#/12#/17#/22# tin-coated ®UL ,8 core shield wireLead Wire LengthRotor:1500mm, Stator:1500mm


    Product Outline Drawing



    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
