    80 Circuit Number industrial conductive slip ring with compact size

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-80P
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    80 Circuit Number industrial conductive slip ring with compact size

    80 Circuit Number industrial conductive slip ring with compact size


    CENO company produce the industrial conductive slip ring with compact size,light weight,high reliability,
    maintenance free and protection level can reach IP68,that is the important reason why many mud scraper
    manufacturers choose us.


    For more details, pls see www.ceno360.com


    Features
    ◆ High Protection level
    ◆ Smooth rotation and stable signal
    ◆ Multi-channels

    ◆ Compact size,light weight


    Applications
    ◆ Lithium battery equipment
    ◆ Motion simulator


    Optional
    ◆ Circuit number
    ◆ IP protection
    ◆ Signal type

    ◆ Current rating


    Specification


    Model : ECN000-80P Parameter
    Current80*2AProtection GradeIP54
    Working Speed0~200rpmRating Voltage240VAC
    Insulation Resistance300MΩ@100VDCDielectric Strength

    ≥1000V@50Hz


    Resistance fluctuation70MΩContact MaterialPrecious metal
    Lead Wire Sizepower wire(0.35mm² ), power shielded wire(0.35mm² )Working Humidity60%RH

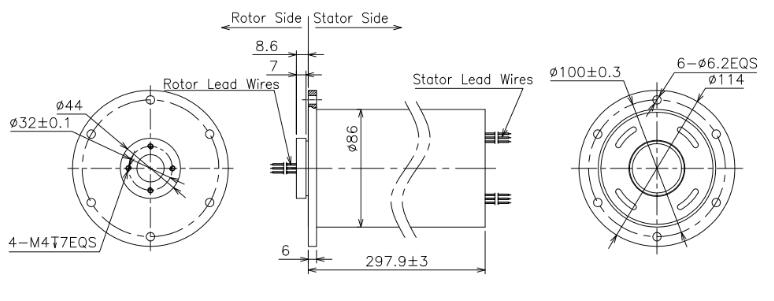

    Product Outline Drawing



    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
