500VAC 800A High Current Slip Ring For Drilling Platform Cranes

High current slip ring,means 250A,500A,600A ,800A ,1500A,3000A and other specifications,different current specifications are applicable to a variety of different sizes and power plating equipment with easy installation and large load flow.

This kind of slip ring has been widely used in Marine cranes, drilling platform cranes, Marine thrusters and other fields.

Features

• Safely current carrying capacity
• Long lifespan,easy maintenance
• High protection,good weather resistance
• Various signal type could be integrated

Applications

• Marine crane,drilling platform cranes, Marine thrusters
• Propulsion
• Alternators,motors

Optional

• Circuit number
• Current size
• Protection grade
• Signal type

Specification

BHCN-C-11P-57S Specification			Picture
Current	6*800A,3*100A,2*PE	3*heater , 40*signal, 14*signal
Voltage	500VAC	220VAC/24VDC
Electrical noise	≤10mΩ(50rpm)	≤10mΩ(50rpm)
Dielectric strength	≥2500V@50Hz	≥1000V@50Hz
Insulation resistance	≥500MΩ@500VDC	≥300MΩ@500VDC
Contact material	Copper graphite	Precious metal,gold-plated
Operating speed	0-15 rpm
Operating temperature	-20~+60℃
IP protection grade	IP54

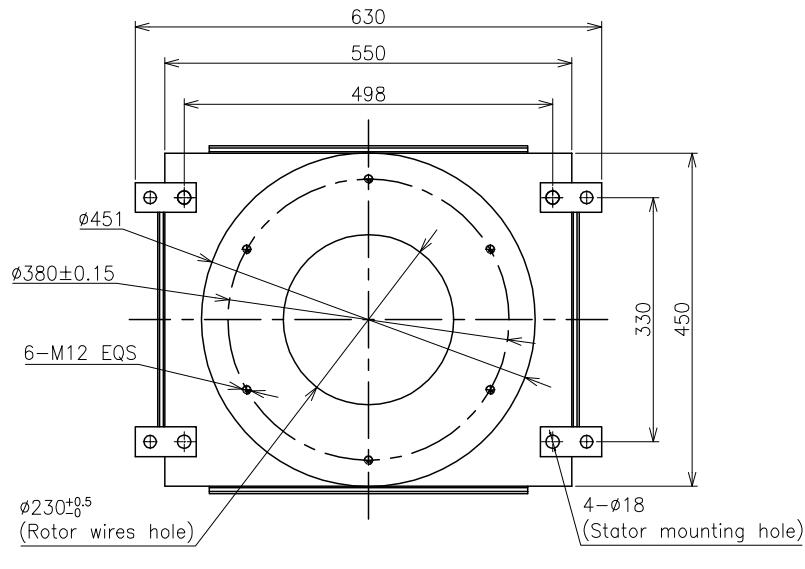

Outline drawing
