    Standard 1000M Ethernet Wire Slip Ring 380VAC 0~300rpm Speed Insulation Resistant

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-02EG
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Standard 1000M Ethernet Wire Slip Ring 380VAC 0~300rpm Speed Insulation Resistant

    Standard 1000M Ethernet Slip Ring Insulation Resistance 500MΩ@500VDC


    Slip ring with Ethernet signal is widely used in automation equipment,it can combine various

    signal and power for stable transmission,no cross talk ,low loss,it also can be provided with RJ45 connector for connection to transmission HD video, high-speed digital signal.
    CENO has developed signal slip ring with Gigabit Ethernet signal character base on market requirement.The Ethernet slip ring comply with EMC compatibility and meet the requirement of Signal impedance matching, to make sure transmission low loss, no error code,long distance transmission. CENO Ethernet slip ring transmission distance could up to 1000Mbps , or over this speed. It could integrate another current and signal into one slip ring for different customer’s requirement.


    Features

    • Transmit1000M Ethernet
    • Integrate various signal and power,comply with EMC
    • reliable transmitting,no package loss,no cross talk,low loss
    • Compact size,running smooth

    Applications

    • Automation equipment
    • Oceanographic survey system
    • Motion simulator

    Optional

    • Circuit number
    • IP protection grade
    • Current rating
    • Signal type

    Specification


    ECN000-02EG SpecificationPicture
    Current2 group*1000M Ethernet
    Rating voltage380VAC
    Dielectric strength≥1000VAC@50Hz
    Insulation resistance500MΩ@500VDC
    Electrical noise≤70mΩ
    Working temperature-20℃~+60℃
    Working speed0~300rpm
    Contact materialPrecious metal
    Housing MaterialAluminum alloy sandblasting oxidation black

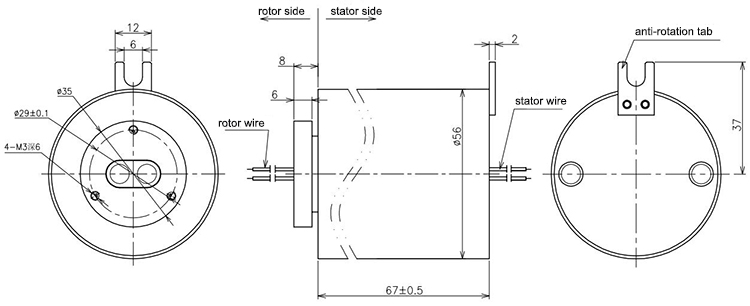

    Outline Drawing


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
