Hollow Shaft Slip Ring Using The Best Advanced Fiber Brush Technology And Precious Metals

The through bore slip rings use the best advanced fiber brush technology and precious metal multi-contacting, they offer low electrical noise for high data rate field bus transmission, low contact pressure for long lifetime and they are maintenance free.

We offer standardized & modularized design and fully customizable products according to the special requirements of customers in different applications

Applications

• Radar antenna ,motion simulator
• Construction engineering
• Robot,package equipment
• Lithium battery equipment

Optional

• Through hole size
• Circuit ,current rating
• Installation way
• IP protection grade

Features

• Center hole is easy to install,as well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint
• Low friction, long life,Low torque, smooth rotation
• Transmit data and analog signal,compatible with data bus protocol

Parameter

ECN025-12P2-06S Specification		Picture
Current	12*10A,6*signal
Rating voltage	380VAC
Electrical noise	≤70mΩ (50rpm)
Dielectric strength	≥1000V@50Hz(power) ≥500V@50Hz(signal)
Insulation resistance	500MΩ@500VDC(power) 300MΩ@100VDC(signal)
Through bore size	Ø25.4mm
Working temperature	-20℃~+60℃
Protection grade	IP54
Working speed	0~300rpm
Contact material	Precious metal

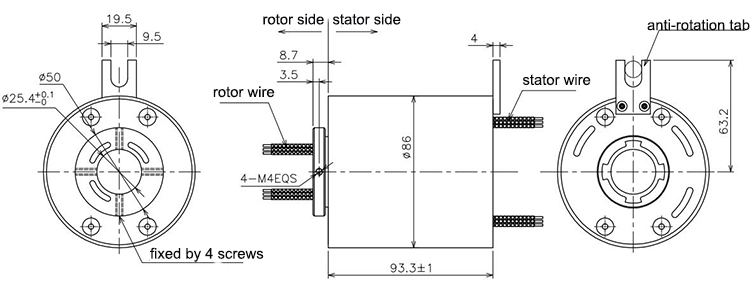

Outline drawing

Q: Do you offer hybrid design with electrical channel and fluid or air channel combination?
Yes,CENO air/fluid rotary union and electrical slip ring can be integrated together into one complete solution.The solution can for fluid, power, signal, and data transfer. We offer both standard assemblies and custom solutions to meet your exact requirements. Welcome to consult us with your demands.

Q: How do we mount the hollow shaft slip ring on our machinery?

Hollow shaft mounting way
1) Position the slip ring in the desired location and equally tighten both set screws to the shaft on each end of the union. Torque to 25 lb-in.
2) Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3) Position a screw or dowel (not supplied) in the anti-rotation tab.

Flange mounting way
1) Align the mounting holes in the flange to mounting base and install flat washers and thread forming screws (NOT SUPPLIED) for plastic. Securely tighten screws.
2) Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3) Position a screw or dowel (not supplied) in the anti-rotation tab.

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Why choose CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in China.
