Radio Frequency Rotary Joint Operating To 5 GHz Female SMA Connectors With 4 Group Signal

Our rotary joint for radio frequency applications like rotating radar antenna, has an average rotation speed limit of 250 RPM. Our rotary joint design adopts the principle of skin effect of high frequency signal and the structure simulation of coaxial cable. To ensure RF rotary joint with the high frequency signal low damage and reliable transmission, it has advantages of long service life, cost-effective, strong anti-interference ability with compact structure.

Features

• Stable performance and high reliability
• Integrated RF rotary joint
• Compact size,high integration level

Applications

• Radar equipment
• Antenna system
• High definition network video system

Optional

• Gas-liquid rotary joint size
• Circuit number
• Installation way
• Radio frequency range

Specification

ECN000-08P2-04S-02R Specification		Picture
Current	8* 10A ; 4*signal
Voltage	440VAC/VDC
Insulation resistance	500MΩ@300VDC(current) 100MΩ@300VDC(signal)
Dielectric strength	≥1000V@50hz(current) ≥300V@50hz(signal)
Electrical noise	≤10mΩ (50rpm)
Operating speed	0~250rpm
Contact material	Precious metals
Operating temperature	-40℃~+80℃
Channel number	2
Frequency range	DC-5GHz
Insert lost and changing	≤0.25dB(0.05) ≤0.3dB(0.15)
Interface type	3.5mm-f SMA(50Ω)

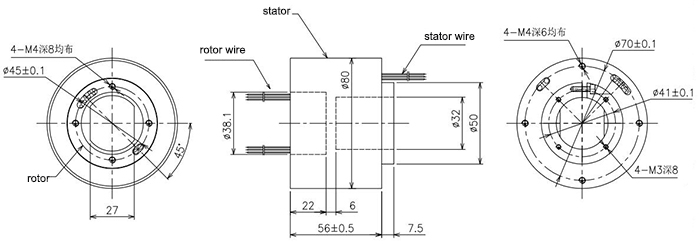

Outline drawing
