Right Angle High Speed Rotary Joint Integrate Current Ethernet And Air

QCN0102-06P1-02EM is an integrated rotary union slip ring, which is designed by CENO for lithium battery equipment to pass air and power. This rotary union has one air channel with interface straight-through, the interface size is G1/4 and pipe size is Ø 10 mm .As well as 6 circuits 5A,1circuit PE and 2 groups of 100M Ethernet signals in this union.Its rotating speed at 0~250RPM under the working temperature of - 40 ℃ ~ + 80 ℃ with its characteristic of stable signal transmission, no interference, no error.

Features

• Integrate current and gas-liquid rotating joint
• Current channel number and rotary joint size could be optional
• Various type signal could be integrated
• Right angle high speed rotary joint

Applications

• Lithium electricity equipment
• Automatic equipment

Optional

• Gas-liquid rotary joint size
• Circuit number
• Installation way
• Signal and ethernet type

Specification

QCN0102-06P1-02EM Specification		Picture
Current	6*5A,1*PE,2*100M Ethernet signal
Voltage	0~380VAC/VDC
Insulation resistance	≥500MΩ@500VDC(current) ≥100MΩ@100VDC(signal)
Dielectric strength	≥1500V@50hz(current) ≥500 V@50hz(signal)
Resistance fluctuation	10mΩ(with50rpm)
Operating speed	0~250rpm
Contact material	Precious metals
Operating temperature	-40℃~+80℃
IP protection grade	IP51
Channel number	1* air
Connector size	G1/4
Max pressure	0.6MPa
Pipe size	Ø10mm

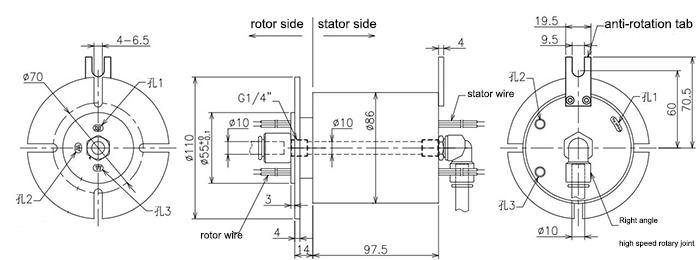

Outline Drawing
