Features

• Easy to install,as well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint
• Low torque, smooth rotation
• Transmit data and analog signal,compatible with data bus protocol

Applications

• Medical equipment
• Motion simulator
• Package equipment

Optional

• Circuit number
• Current rating
• Installation way
• IP protection grade

Specification

ECN000-18P-11S Specification		Picture
Current	18*5A,11*signal
Voltage	48V
Electrical noise	≤70mΩ(50rpm)
Dielectric strength	≥1000V@50Hz(power) ≥300V@50Hz (signal)
Insulation resistance	500MΩ@500VDC(power) 100MΩ@300VDC(signal)
Operating speed	0-300 rpm
Contact material	gold to gold
Operating temperature	-40~+80℃
IP protection grade	IP54

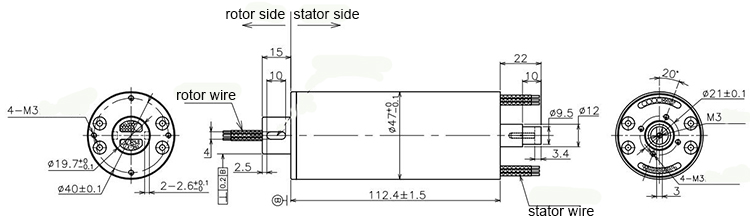

Outline Drawing

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.

CENO Electronics Technology Co.,Ltd is a technical company. It has been engaged in Research, Development, Design, Manufacture and Sales in the slip ring field since 2009 and has accumulated abundant experiences and continued to offer high-quality slip rings & professional solutions to many industries and global customers.

CENO factory covers 3000 square meters, and registration capital is 5 million CNY.All members of our technical team are senior engineers, had ever worked for local research institution and multinational enterprise in the slip ring field for more than 10 years. In this field, we aimed to offer completed solutions to our customers,from design, manufacturing to sales since we can fully understand customer’s high-quality demand and application.In order to provide professional services to meet high-end markets’ requirements in respective fields such as maritime, defence, automation, radar, aerospace,motion simulator and engineering machinery.

To satisfy diversified technology demands, CENO has introduced the comprehensive quality management system since 2015, to strictly control each process from R&D, manufacturing, testing and after-sales tracking.No only count on advanced high precision equipment,also utilize high technology to improve product performance and utilize precise instrument to ensure product quality.

CENO electronics is striving to become the leading manufacturer of professional slip rings in the world. Furthermore, we have obtained certification of ISO9001, CE,UL,RoHS and some advanced technology patents. Products sales cover more than 30 provinces & areas domestic, and widely sold worldwide,such as USA, Germany, Italy, Switzerland, UK, France, Singapore, Japan, Korea, Indonesia and so forth. Providing OEM &ODM services to many well-known companies in the world.

As a technical enterprise,CENO has abundant experience in particular industry and special industrial slip ring design.We are capable of providing below customized design.

· Marine environment

· High current,High voltage slip rings

· SDI,HDMI High definition slip rings

· Ethernet,USB High speed rate slip ring

· Encoder,CANBUS,temperature sense measurement and control

· Fiber optical rotary joint,Wave length is optional,Channel number up to 20

· RF rotary joint,frequency up to 50GHz

· IP65 protection or higher

· Pneumatic,Hydraulic,Explosion-proof slip ring

· High altitude,Strong vibration,Strong impact,Low temperature application

· Above particular slip rings are allowed to integrate.Welcome to contact us with your demand.
