1 Group Air Ø8 mm Pipe High Speed Air Rotary Union Joint Integrate Current Ethernet

This is an integrated rotary joint for lithium battery equipment . Power channels integrate air channel.The air pressure support 1.0MPa and

its connector size is 8mm.One group of 1000M Ethernet is combined into the design too.

Applications

• Automation equipment
• Motion simulator
• Lithium battery equipment

Optional

• Gas-liquid rotary joint size
• Installation way
• Current rating
• Ethernet signal

Features

• Transmit 1000M Ethernet
• Reliable transmitting,no package loss,no cross talk,low loss
• Integrated current, signal and high-speed air rotary joint

Specification

QCN0101-03P2-02P1-01EG		Picture
Current	3*10A, 2*5A, 1 group 1000M Ethernet
Voltage	380VAC
Electrical noise	≤70mΩ(50rpm)
Dielectric strength	≥1000VAC@50Hz(power) ≥300VAC@50Hz (signal)
Insulation resistance	500MΩ@500VDC(power) 100MΩ@300VDC(signal)
Operating speed	0~50rpm
Contact material	precious metals
Operating temperature	-20℃~+60℃
Channel number	1*air
Connector size	Ø8 pipe @G1/8
Max pressure	1.0MPa
Pipe size	Ø8mm

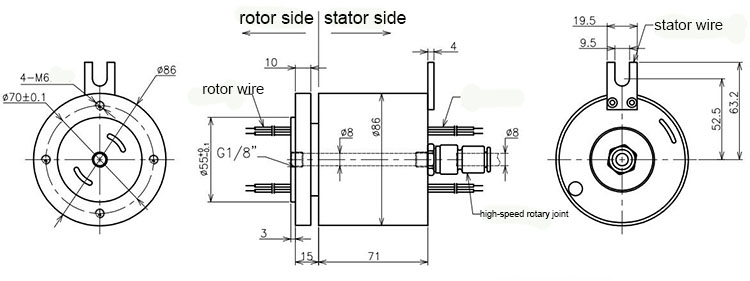

Outline Drawing

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.

CENO Electronics Technology Co.,Ltd is a technical company. It has been engaged in Research, Development, Design, Manufacture and Sales in the slip ring field since 2009 and has accumulated abundant experiences and continued to offer high-quality slip rings & professional solutions to many industries and global customers.

CENO factory covers 3000 square meters, and registration capital is 5 million CNY.All members of our technical team are senior engineers, had ever worked for local research institution and multinational enterprise in the slip ring field for more than 10 years. In this field, we aimed to offer completed solutions to our customers,from design, manufacturing to sales since we can fully understand customer’s high-quality demand and application.In order to provide professional services to meet high-end markets’ requirements in respective fields such as maritime, defence, automation, radar, aerospace,motion simulator and engineering machinery.

To satisfy diversified technology demands, CENO has introduced the comprehensive quality management system since 2015, to strictly control each process from R&D, manufacturing, testing and after-sales tracking.No only count on advanced high precision equipment,also utilize high technology to improve product performance and utilize precise instrument to ensure product quality.

CENO electronics is striving to become the leading manufacturer of professional slip rings in the world. Furthermore, we have obtained certification of ISO9001, CE,UL,RoHS and some advanced technology patents. Products sales cover more than 30 provinces & areas domestic, and widely sold worldwide,such as USA, Germany, Italy, Switzerland, UK, France, Singapore, Japan, Korea, Indonesia and so forth. Providing OEM &ODM services to many well-known companies in the world.

As a technical enterprise,CENO has abundant experience in particular industry and special industrial slip ring design.We are capable of providing below customized design.
