    16000M Working Altitude Industrial Slip Ring 24VDC For Satellite Communications

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN038-03P2-12S-JZ
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    16000M Working Altitude Industrial Slip Ring 24VDC For Satellite Communications

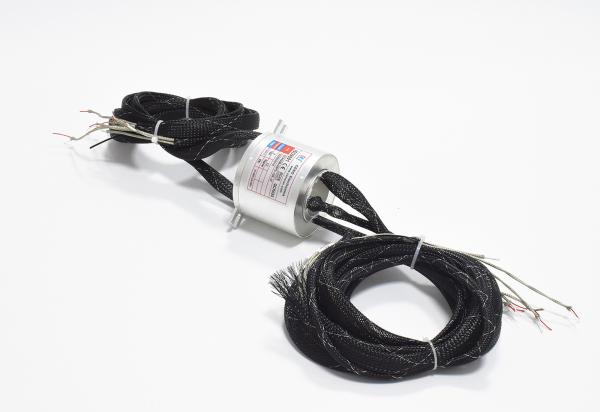

    16000M Working Altitude Slip Ring For Satellite Communications


    This slip ring with through bore design, it transmits power and TL signal together , it is widely used for radar antenna

    and satellite communications systems. it can work at 16000M altitude airborne operation,and working

    temperature -55℃~+70℃ ,even though it works in harsh environments,it still maintains high performance.


    Features

    • Center hole is easy to install,as well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint
    • 16000M working altitude
    • Low temperature environment

    Applications

    • Radar antenna
    • Satellite communications
    • High definition monitoring system


    Optional

    • Through hole size
    • Circuit number
    • Current rating
    • IP protection grade

    Specification


    ECN038-03P2-12S-JZPicture
    Current3*10A,12*TL signal
    Voltage24VDC
    Electrical noise≤70mΩ(50rpm)
    Dielectric strength≥500V@50Hz
    Insulation resistance

    500MΩ@500VDC(power)

    300MΩ@500VDC(signal)

    Operating speed0-50 rpm
    Contact materialprecious metals
    Operating temperature-55~+70℃
    Through bore size38.1mm
    IP protection gradeIP54


    Outline Drawing



    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
