Rotary Joint Assembly Hollow Shaft Series Fiber Brush Multipoint Contact

This is CENO electronics hollow shaft rotary union with aluminum alloy housing material,low electrical noise,smooth rotation,there is a through hole 25.4mm,we can use it for installation,align slip ring's through hole to mounting shaft,apply external force along the axis direction to move the slip ring to predetermined installation position,fixing slip ring rotor part and mounting shaft, fixing stator side via anti-rotation tab.

Specification

ECN025-16P3		Picture
Current	16*15A
Voltage	380VAC
Electrical noise	≤70mΩ(50rpm)
Dielectric strength	≥1000V@50Hz
Insulation resistance	≥500MΩ@500VDC
Operating speed	0-300 rpm
Contact material	precious metals
Operating temperature	-20~+60℃
Through bore size	25.4mm
IP protection grade	IP54

Application

• Package equipment
• Medical treatment equipment
• Construction engineering

Optional

• Through hole size
• Circuit number
• Current rating
• Signal type

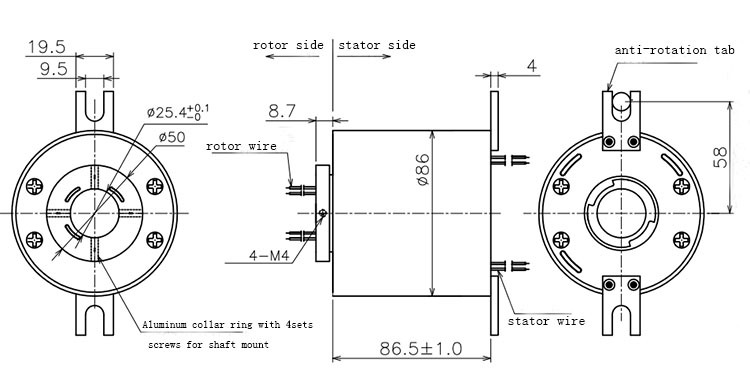

Outline drawing
