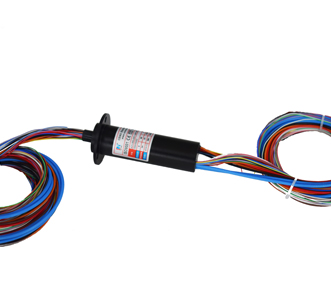

1750MHz Frequency Range Miniature capsule slip ring integrate RF Signal

This is compact size capsule slip ring, it integrates 2 circuits RF signal,with RG178 coaxial cable. RF high frequency/microwave coaxial rotary joint is used in the 360° continuous rotation devices to transfer DC~80GHz high frequency signals. Application for satellite Antenna,vehicle,radar,Microwave antenna test etc.

Specification

ACN-56A-04P1-40P-02RF		Picture
Current	4*6A,40*2A,2*RF signal
Voltage	0~240VAC/VDC
Electrical noise	≤35mΩ(50rpm)
Dielectric strength	≥500V@50Hz(power) ≥100V@50Hz(signal)
Insulation resistance	≥100MΩ@500VDC(power) ≥10MΩ@100VDC(signal)
Operating speed	0-50 rpm
Contact material	precious metals
RF connector	SMA-J/SMA-J
Frequency range	930-1750 MHz
Isolation	>20 dB

Features

• Compact size
• Low noise,low torque,smooth rotation
• Power integrate RF signal

Applications

• Radar antenna
• Wind turbine equipment
• Robot arm
• Instrument

Optional

• Circuit number
• Current rating
• Lead wire length
• IP protection grade

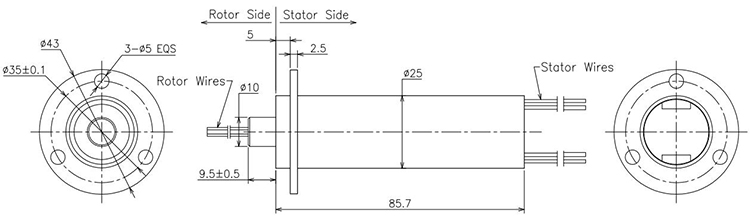

Outline drawing

Q: How does slip ring work?

A: A slip ring is an electrical connection designed to pass the flow of current from a stationary device to a rotating one.This electromechanical device is also known as a rotary electrical connector or rotary electrical joint. Electrical slip rings are free to rotate without limitations, unlike cables which twist and eventually break.In general, conductor rings are mounted on the rotor and terminated with leadwires that run axially through the rotor to one end. Brushes are secured by a brush holder that is mounted to the housing.Electrical slip rings work by holding a sliding contact (brush) against a ring (conductor ring). One part, typically the brush, is stationary while the other, typically the conductor ring, rotates.Electrical components incude the brush, contact ring, and electrical connectors.They are made of precision materials are selected based on requirements such as current size, voltage drop, rotational speed, temperature, resistance variation, bandwidth, and characteristic impedance.

Q: What applications are they used?

A: Typical applications refers revolving automation or control systems such as turntables, index tables, and robots. Wind turbines, semiconductor processing, printing plastic molding, CNC and MRI medical scanners, satellite communications, beverage bottle filling process, and industrial filling machine are also common slip ring applications.
