4 Circuits RS422 Signal Slip Ring Assembly With MB Network Signal

This through bore slip ring inner diameter 40.5mm, it is mainly used for transmission of precision signals, weak current, large current and high voltage. the signal transmission supports Ethernet, USB, RS, Canbus and encoder signal , it is suitable for industrial automation equipment, it is durable,compact and low cost ,in stock ,fast lead time.

Specification

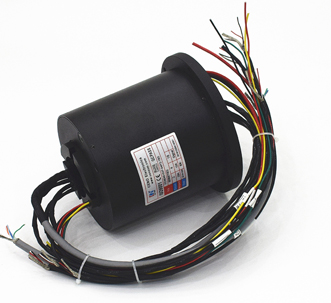

ECN040-02P-04P2-18S		Picture
Current	2*20A,4*10A,4*encoder,4*RS422; 1*MB network,4*others
Voltage	220VAC
Electrical noise	≤70mΩ(50rpm)
Dielectric strength	≥1000V@50Hz
Insulation resistance	500MΩ@500VDC
Operating speed	0-100 rpm
Contact material	precious metals
Operating temperature	-20~+60℃
Through bore size	40.5mm
IP protection grade	IP54

Applications

• Motion simulator
• Package equipment
• Industrial automation equipment

Optional

• Through hole size
• Circuit number
• Current rating
• IP protection grade

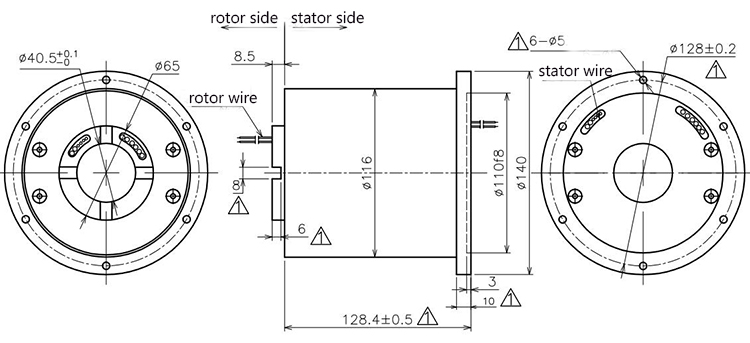

Outline drawing
