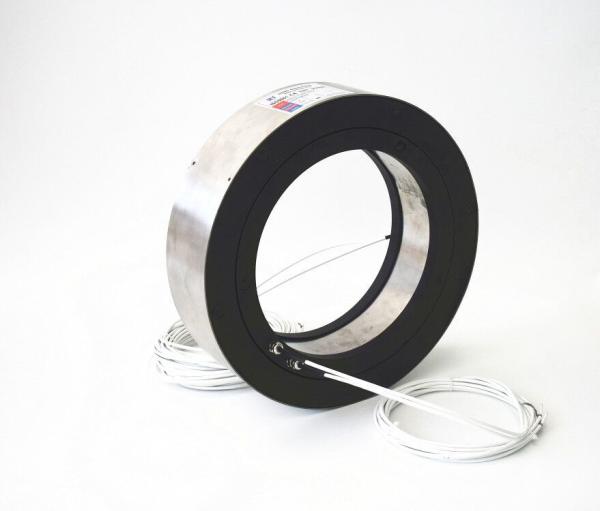

    1000VAC 10A 260mm Copper Graphite High Voltage Slip Ring

    Ask Lasest Price
    Brand Name : CENO
    Model Number : BHCN-C-260-02P2
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    1000VAC 10A 260mm Copper Graphite High Voltage Slip Ring

    BHCN-C-260-02P2

    This is a high voltage slip ring with 1000VAC include 2 rings of 10A and 260mm inner diameter. Contact material apply
    imported copper graphite, reliable performance, low dust and long lifetime. housing material is stainless steel. other
    specifications different current & voltage are applicable according to customers’ requests. The typical application including
    Marine crane, Propulsion, Drilling platform, Oil equipment etc.

    Specification


    Current2*10A
    Voltage1000VAC
    Electrical noise≤70mΩ(50rpm)
    Dielectric strength≥2000V@50Hz
    Insulation resistance≥1000MΩ@500VDC
    Contact materialCopper graphite
    Operating speed0~10rpm
    Operating temperature-35°C~+80°C
    IP protection gradeIP54
    Through hole size260 mm

    Features

    • Safely current carrying capacity
    • Long lifespan, easy maintenance
    • High protection, good weather resistance
    • Various signal type could be integrated

    Applications


    • Safely current carrying capacity
    • Long lifespan, easy maintenance
    • High protection, good weather resistance
    • Various signal type could be integrated

    Optional


    • Through hole size
    • Current rating
    • Signal type
    • IP protection grade

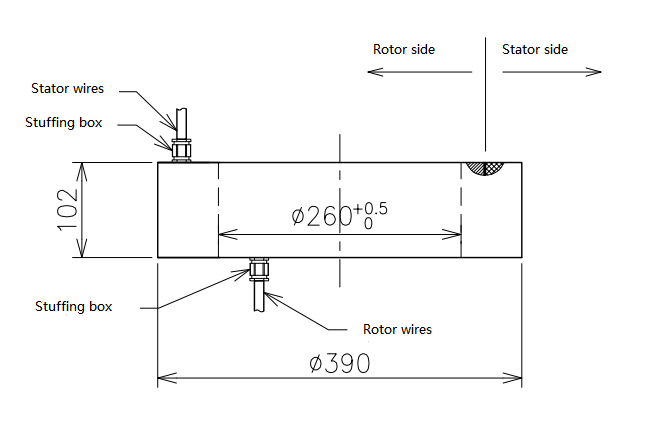

    Outline Drawing
