    IP65 Through Hole 50mm Rotary Table Waterproof Slip Ring

    Ask Lasest Price
    Brand Name : CENO
    Model Number : HG50160F-6P-23S
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

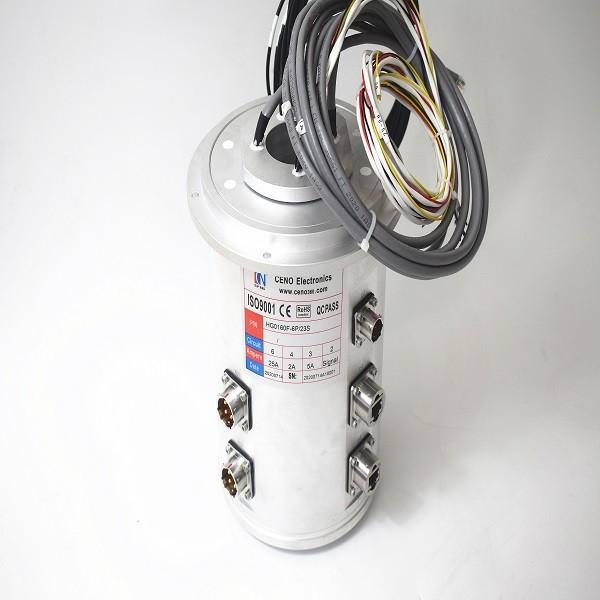

    IP65 Through Hole 50mm Rotary Table Waterproof Slip Ring

    Waterproof slip ring for rotary table


    This is waterproof slip ring for Rotary table,its outstanding advantage is that IP protection grade IP65,through hole size is 50mm,6*25A,4*2A,3*5A.2*CAT5e .it can work in special environment of moisture, corrosion and underwater. the waterproof slip ring could be divided into multiple protection grade, such as IP65,IP67,IP68 and so on. The protection grade design and material selection for the slip ring is associated with working environment liquid ingredients, such as sea water, fresh water, oil etc .

    Specification


    Rings6*25A,4*2A,3*5A.2*CAT5e
    Voltage0~220VAC/VDC
    Electrical noise≤10mΩ(50rpm)
    Dielectric strength≥500V@50Hz
    Insulation resistance≥500MΩ@500VDC
    Operating speed0-12 rpm
    Contact materialPrecious metal
    Housing materialAluminium alloy sandblasted oxidized white
    IP protection gradeIP65
    Working temperature-20°C~+70°C
    Through hole size50 mm

    Features

    • IP Protection reach to IP68
    • Could work under water 1000M
    • High pressure resistant,anti-corrosion

    Applications

    • Vessel machinery, port machinery, ROV
    • Beer machinery, filling machinery
    • Drilling platform, oil well

    Optional

    • Through hole size
    • Current rating
    • Signal type
    • IP protection grade

    Outline Drawing



    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
