    Radar System Inner Hole 38.1mm Gigabit Ethernet Slip Ring

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN038-03P2-02EG
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

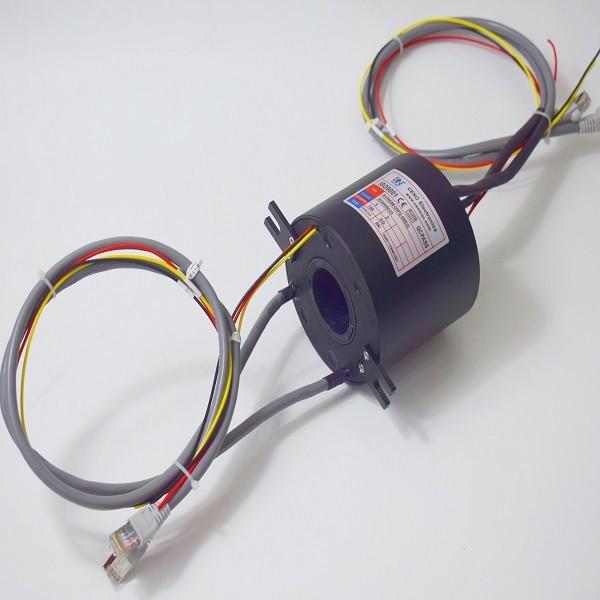

    Radar System Inner Hole 38.1mm Gigabit Ethernet Slip Ring

    Radar System Inner Hole 38.1mm Gigabit Ethernet Slip Ring


    Inner hole 38.1mm Gigabit Ethernet slip ring with gold contacts ,aluminium housing ,for radar system, medical equipment


    Ethernet has been operational in slip rings since the mid 1980s when it started being transmitted across twisted pair wire. As the format progressed the data speed increased requiring more bandwidth. Ensuring functionality through a slip ring has become dependent upon proper configuration. Passive slip rings can still handle the vast majority of Ethernet requirements today, but guaranteeing performance in your application requires we specify the following details up front to configure the optimal slip ring.


    Specification


    ECN038-03P2-02EGSpecification
    Circuits3*10A, 2*Gigabit Ethernet
    Voltage0~24VAC/VDC
    Electrical noise≤30mΩ(50rpm)
    Dielectric strength≥500V@50Hz (power & signal)
    Insulation resistance≥100MΩ@100VDC (power & signal)
    Operating speed0-300 rpm
    Contact material

    Precious metal (power)

    Gold to gold (signal)

    Housing materialAluminium alloy
    IP protection gradeIP54
    Through hole size38.1mm

    Advantages


    Power and Ethernet mixed

    Working speed 0~300 rpm

    Easy to install

    Aluminium housing


    Applications


    Test equipment

    Display case

    Medical equipment

    Packaging machine

    Rotary tables

    Motion simulator

    Lithium battery equipment

    Simulation test equipment

    Turntable equipment


    Optional

    Through hole size

    Current rating & circuits number

    Signal type

    IP protection grade

    Cable length


    Outline drawing


    Our Service

    1. Reply inquiry in 24 hours.

    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

    3. Answer your question detailed.

    4. Solved the problem with you during using our products.

    5. Samples will be offered to you for our future cooperation.


    FAQ

    1. What do we do?

    We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.


    2. How long have we been in the business?

    CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.


    3. What is a slip ring?

    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.


    4. How do I choose a slip ring?

    Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.


    5. Do you offer custom slip rings?

    Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
