    Large Hollow Shaft 300mm Through Hole Slip Ring 6 Wire

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN-C-300-06P-08S
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Large Hollow Shaft 300mm Through Hole Slip Ring 6 Wire

    Large Hollow Shaft 300mm Through Hole Slip Ring 6 Wire

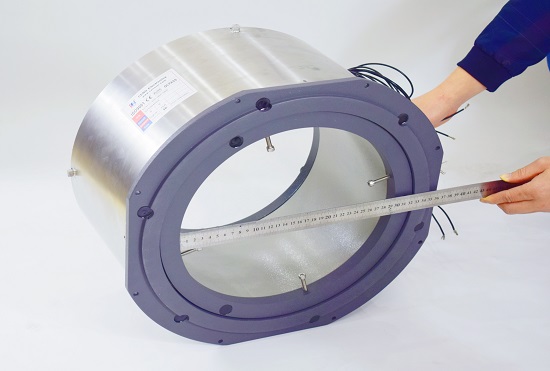

    Large hollow shaft slip ring with 300 mm bore,6 wires for signal and 8 lines for power current,stainless steel housing.


    This is a large hollow shaft slip ring with 300mm inner bore size ,the through hole size can be optional according to different requests.Housing material is aluminium alloy & stainless steel,contacts material is copper graphite,it’s different from the normal power slip ring with more stable transmission and long life time .Three blocks connect rotor and stator for avoiding slip ring rotate during break time.The damage prone components of the new unit adopt scientific modular design,which allows ease of taking apart or installation without requiring disassembling its housing,quick and convenient replacement of internal parts is conducive to prolonging its service life.




    Specification


    ECN-C-300-06P-08SSpecification
    Circuits8*signal,6*15A
    Voltage0~220VAC/VDC
    Electrical noise≤70mΩ(50rpm)
    Dielectric strength≥500V@50Hz
    Insulation resistance≥100MΩ@100VDC
    Operating speed2~8 rpm
    Contact materialCopper graphite
    Housing materialAluminium alloy & stainless steel
    IP protection gradeIP54
    Through hole size300 mm

    Features


    • Anti-corrosion,moisture
    • Easy maintenance
    • Long life time
    • 300mm through bore size


    Applications


    • Beer machine
    • Canned equipment
    • Marine & craneu
    • For offshore equipment
    • Seaport machine
    • Oil drilling platform
    • Port machinery
    • Wind power system

    Optional


    • Through hole size
    • Various signal integrate
    • Circuits number
    • IP protection grade
    • Cable length

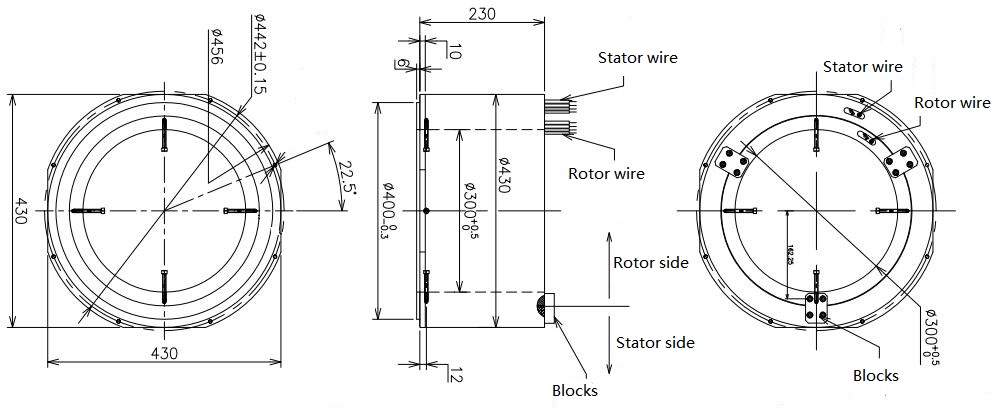

    Outline Drawing


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring

    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel

    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.

    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
