    Hydraulic Integrated 1000M Ethernet USB2.0 Slip Ring

    Ask Lasest Price
    Brand Name : CENO
    Model Number : QCN0203-03P3-47S
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 weeks
    • Product Details
    • Company Profile

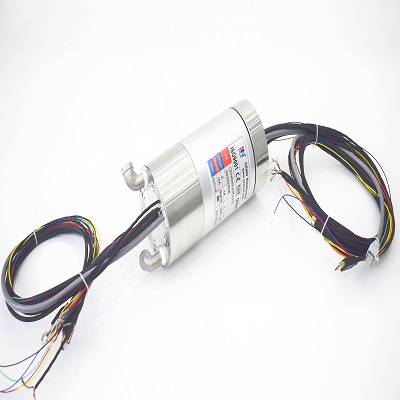

    Hydraulic Integrated 1000M Ethernet USB2.0 Slip Ring

    Hydraulic Integrated 1000M Ethernet USB2.0 Slip Ring


    Power signal and hydraulic integrated slip ring with USB2.0 ,1000M Ethernet ,aluminium housing ,for food processing


    This is a integrated slip ring with 3 rings 10A,5 rings normal signal ,1 group RS422,1 group RS232,1 group USB2.0,1 group 1000M Ethernet and 1 group HDMI .with 2 channels for liquid, the center hole can pass through the drive shaft, gas-liquid passage; it can also integrate high frequency, fiber, encoder, wave guide, gas and liquid and other joints.Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.Any requirement, please feel free to contact us ,and we will recommend the most suitable product to you.



    Features

    • Integrate hydraulic,pneumatic
    • Low torque, smooth rotation
    • Different sealing type
    • Integrate power & various signal
    • Temper -45°C/+ 80°C
    • Two channels for liquid
    • Low torque

    Applications

    • Automatic equipment
    • Food processing
    • Machinery manufacturing
    • Electrical test equipment
    • Tilt camera mounts
    • Exhibit display equipment
    • Robotics
    • Mini-wire-rolling machine

    Optional

    • Air /Liquid channel
    • Circuit number
    • Current rating
    • Interface size
    • IP protection

    Specification


    QCN0203-03P3-47SSpecification
    Current

    3*10A,5*signal ,1*RS422,1*RS232,1*USB2.0,

    1*1000M Ethernet ,1*HDMI .2*liquid

    Voltage0~220VAC/VDC
    Electrical noise30mΩ(50rpm)
    Dielectric strength

    ≥1500V@50Hz (power)

    ≥300V@50Hz (signal)

    Insulation resistance

    ≥500MΩ@500VDC (power)

    ≥100MΩ@100VDC (signal)

    Operating speed0-100 rpm
    Contact materialPrecious metals
    Housing materialAluminum alloy
    Hydraulic channel2 channel*water (G3/8’’)
    Pressure≤1.0MPa

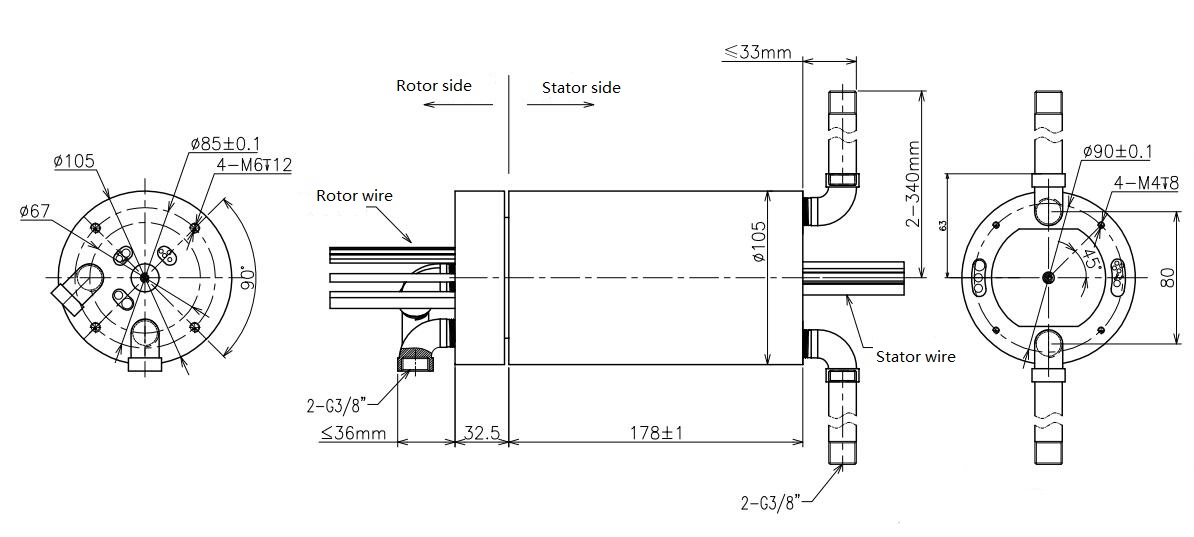

    Outline drawing





    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.



    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
