    Military Industry IP54 25.4 Mm Through Bore Slip Ring

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN025-08P3-08S
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

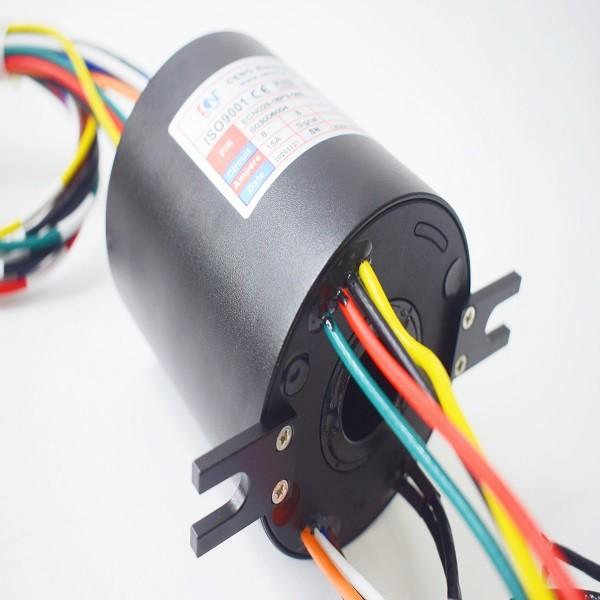

    Military Industry IP54 25.4 Mm Through Bore Slip Ring

    Military Industry IP54 25.4 Mm Through Bore Slip Ring


    ECN Series slip rings feature a 25.4 mm through bore,Aluminium housing,used for robot arms and military industry.


    The ECN Series electrical through bore slip ring is a rotating assembly used to transfer power, control circuits or data (analog / digital) from stationary inlets to rotating outlets. ECN Series slip rings feature a 25.4 mm through bore for shaft mounting and incorporate low-wear, fiber brush contacts that do not require lubrication producing virtually no wear debris. Standard models are available from 6 to 24 circuits. We can provide you with professional design solutions according to the number of wires, current, voltage, signal type, wire length, installation size, rotation speed, working temperature, protection level, etc. , available .



    Specification

    ECN025-08P3-08SSpecification
    Circuits & Current8*15A,8*signal
    Voltage0~380VAC
    Electrical noiseMax 30mΩ (50rpm)
    Dielectric strength

    ≥1000V@50Hz (power)

    ≥500V@50Hz (signal)

    Insulation resistance

    500MΩ@500VDC (power)

    100MΩ@100VDC (signal)

    Operating speed0-300 rpm
    Contact materialPrecious metal
    Housing materialAluminium housing
    IP protection gradeIP54
    Through hole size25.4 mm
    Working temperature-40C°~ +80C°


    Features


    • Hollow shaft installation
    • Through bore 25.4mm
    • Long service life
    • Anti-jamming ,very low cost
    • Precious contacts
    • Compact structure
    • Stable reliable performance
    • Low torque, low noise
    • Power integrate signal


    Applications


    • Ship offshore equipment
    • Beer machine
    • Canned equipment
    • Wrapping machines
    • Oil and drilling platform
    • Food industry
    • CT scan
    • Robot arms
    • Medical machine
    • Military industry

    Optional


    • Through hole size
    • Current & ring numbers
    • Signal type
    • IP protection grade
    • Contacts material
    • Cable length


    Outline Drawing


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring

    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel

    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.

    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
