    1310nm IP66 Fiber Optic Rotary Joint Remotely Operated Vehicles

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-02P-04S-01F-IP66
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    1310nm IP66 Fiber Optic Rotary Joint Remotely Operated Vehicles

    1310nm IP66 Fiber Optic Rotary Joint Remotely Operated Vehicles


    Power/signal and fiber optic rotary joint with IP66 protection grade,wavelength 850/1310nm, Used for Remotely Operated Vehicles


    ECN000-02P-04S-01F-IP66 is a fiber optic rotary joint (FORJ),it’s also meet waterproof grade IP66. Fiber optic is designed for the most demanding requirements and tested for those rugged environment and superb optical performance. All of materials and components have been selected to ensure the highest reliability in extreme conditions, including shock & vibration, working temperature, working humidity and dust. The design of these FORJ has proven performance records in both industrial and military applications. Also the package can be configured to fit the customer’s specific need. FORJ are available in single and multi-channel options. The most cost and size efficient options are the single and dual channel design. If more than two fibers are present in a system, multiplexing solutions are available to combine multiple channels onto one or two fiber to allow the use of a one or two channel FORJ.


    Specifications


    ECN000-02P-04S-01F-IP66Specification
    Circuits & Current2*100mA,4*20mA,1*Fiber optic
    Voltage0~200 VAC/VDC
    Electrical noiseMax 30mΩ (50rpm)
    Dielectric strength≥500V@50Hz
    Insulation resistance≥100MΩ@100VDC
    Operating speed0-50 rpm
    Contact materialPrecious metal
    Housing materialAluminium alloy + stainless steel
    IP protection gradeIP66
    Through hole sizeSolid bore
    Wave length850/1310nm
    Fiber channel1channel MM
    Connector typeSC

    Advantages

    • Power integrated fiber optic
    • Waterproof IP66
    • SC type connector
    • Wavelength 850/1310nm

    Applications

    • Turntable equipment
    • Marine Population Systems
    • Remotely Operated Vehicles
    • Radar Antennas
    • Material Handling Systems

    Optional

    • Circuit number
    • Current rating
    • Fiber type
    • IP grade
    • Cable length

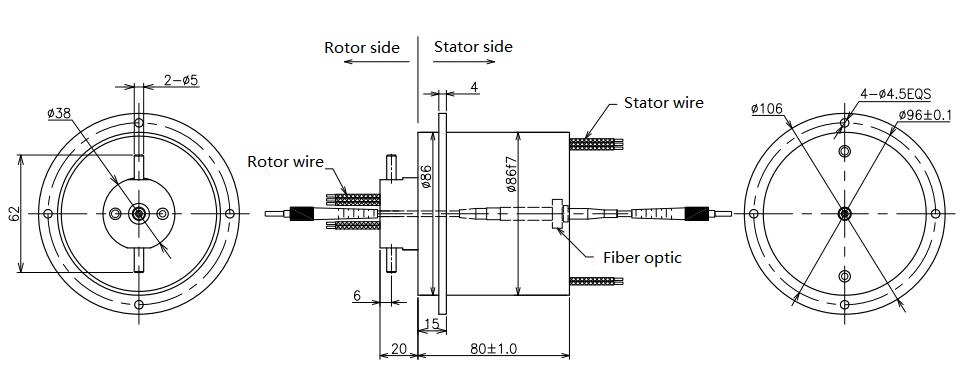

    Outline drawing
