    25.4mm 1500 Rpm Fiber Optic Slip Ring With Black Aluminium Housing

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN025-06S
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union, L/C
    Supply Ability : 1000pcs per month
    Delivery Time : 1 weeks
    • Product Details
    • Company Profile

    25.4mm 1500 Rpm Fiber Optic Slip Ring With Black Aluminium Housing

    25.4mm 1500 Rpm Fiber Optic Slip Ring With Black Aluminium Housing

    High speed 1500 rpm working speed slip ring with 25.4mm inner bore and black aluminium housing,used for high speed train.


    High speed slip ring mean it could rotating speed at lease 1000rpm. It mainly be used in high speed train,Nondestructive testing equipment,Eddy current testing equipment and so on.ECN025-06S is a high speed slip ring with 1500 rpm working speed ,it’s also called through bore slip ring,the inner bore can be customized ,CENO Max inner bore can reach up to 980mm .CENO adopts the advanced technology to ensure high concentricity for high speed slip ring,adopts special technology in the structure between the stator and rotor for ensuring the slip ring performance stably during it rotating under high speed.Typical application including Automation equipment,Inspection instrument,High-speed train,Aviation aircraft etc.CENO can integrate many kinds of signal and different current rating in one slip ring ,please contact with us if you have any special requirements .






    Features


    • Stable transmission
    • Power transmission stably
    • Low torque,low loss
    • High speed 1500 rpm
    • Light weight




    Applications

    • Radar antennas
    • Automation equipment
    • Inspection instrument
    • High-speed train
    • Aviation aircraft




    Optional

    • Working speed up to 10000 rpm
    • Current & ring numbers
    • Integrate various signal
    • IP protection grade





    Specification

    ECN025-06SSpecification
    Circuits & Current6*Signal (PT100)
    Voltage0-24VAC/VDC
    Dielectric strength≥500V@50Hz
    Insulation resistance≥300MΩ@500VDC
    Electrical noiseMax 30mΩ (50 rpm)
    Operating speed0-1500 rpm
    Contact materialPrecious metal
    Housing materialAluminum alloy
    IP gradeIP51
    Inner hole size25.4 mm
    Working temperature-20°C ~ +60°C

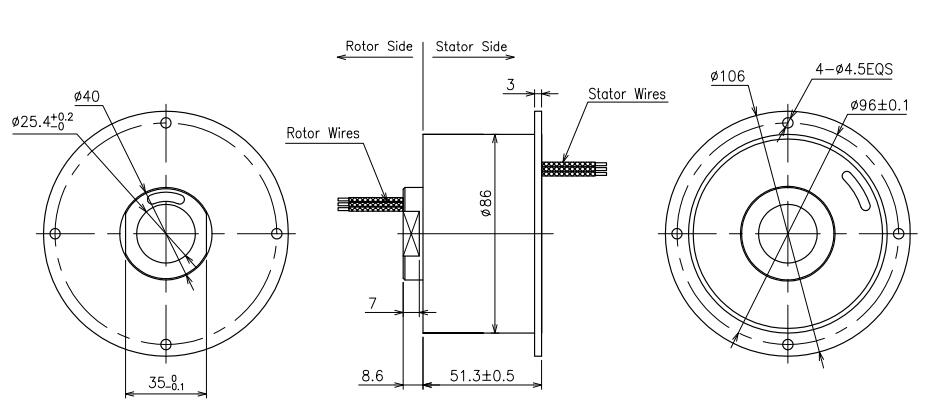

    Outline drawing








    Why with CENO
    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
